MADR-007097-000100 - MACOM

Description: Gate Drivers SPDT Driver

Download MADR-007097-000100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

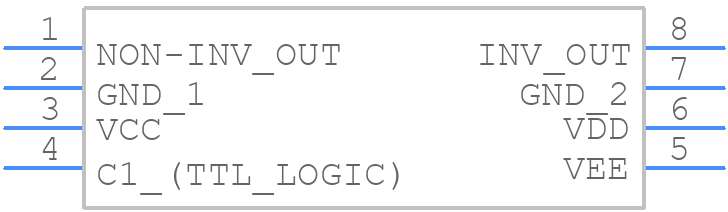

MADR-007097-000100 - MACOM - PCB symbol
click to zoom
PCB Footprints
MADR-007097-000100 - MACOM PCB footprint - Small Outline Packages - Small Outline Packages - soic-8--
click to zoom
3D Models
MADR-007097-000100 - MACOM - 3D model - Small Outline Packages - soic-8--
click to zoom

MADR-007097-000100 Details

  • Manufacturer Part Number:

    MADR-007097-000100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    MACOM

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MADR-007097-000100 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed layout guide is available upon request from MACOM's application engineers.
  • The MADR-007097-000100 requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly connected to the bias circuit.
  • The recommended operating temperature range for the MADR-007097-000100 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
  • The MADR-007097-000100 is an ESD-sensitive device. Handle the device with ESD-protective equipment, and ensure that the PCB design includes ESD protection circuits to prevent damage during assembly and operation.
  • Store the MADR-007097-000100 in its original packaging, away from direct sunlight and moisture. Handle the device by the edges, and avoid touching the pins or die to prevent damage.
