MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to ensure efficient heat dissipation. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to facilitate heat transfer.
The MADR-009190-0001TR requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is operated within the recommended operating conditions.
The recommended input and output matching network for the MADR-009190-0001TR involves using a combination of series and shunt inductors, capacitors, and resistors to achieve optimal impedance matching and minimize reflections. Consult MACOM's application notes for specific guidance.
Common issues with the MADR-009190-0001TR can be troubleshooted by checking the bias circuit, ensuring proper input and output matching, and verifying the device is operated within the recommended operating conditions. Consult MACOM's troubleshooting guide for specific guidance.
The MADR-009190-0001TR is a sensitive electronic component and should be stored in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package, avoiding touching the pins or die, and use anti-static precautions to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MADR-009190-0001TR Overview

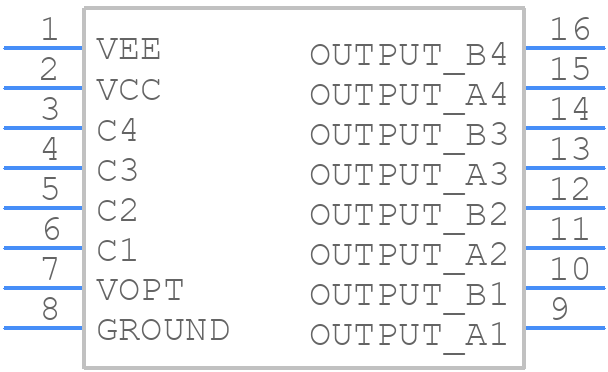

Use the download button to access the MADR-009190-0001TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MADR-,
or try a keyword search, such as Other Interface ICs
