MADR-009190-000DIE - MACOM

Description: Quad Driver for GaAs FET or PIN Diode Switches and Attenuators

Download MADR-009190-000DIE Model

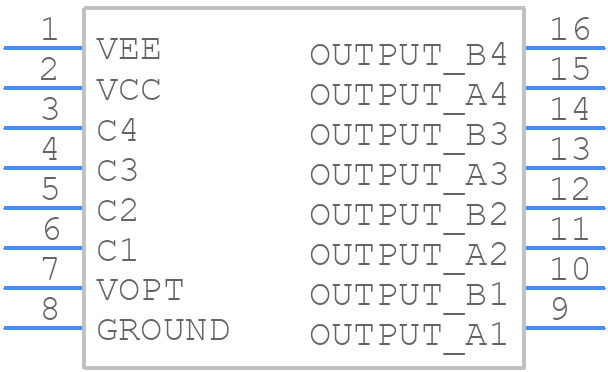

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MADR-009190-000DIE - MACOM PCB footprint - Small Outline Packages - Small Outline Packages - Output B4
click to zoom
3D Models
MADR-009190-000DIE - MACOM  - 3D model - Small Outline Packages - Output B4
click to zoom

MADR-009190-000DIE Details

  • Manufacturer Part Number:

    MADR-009190-000DIE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIE

  • Package Description:

    DIE-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    MACOM

  • YTEOL:

    6.37

  • Interface IC Type:

    TTL TO GAAS TRANSLATOR

  • JESD-30 Code:

    R-XUUC-N16

  • JESD-609 Code:

    e3

  • Length:

    1.735 mm

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIE

  • Package Shape:

    RECTANGULAR

  • Package Style:

    UNCASED CHIP

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HVCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.325 mm

MADR-009190-000DIE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and careful routing of RF signals is recommended. Keep the input and output traces short and away from other signals.
  • Use a high-impedance input source, ensure a good ground connection, and add a 10-20 ohm resistor in series with the input to prevent oscillations.
  • The device can handle up to +10 dBm of input power without damage, but optimal performance is achieved at input powers below +5 dBm.
  • Yes, but impedance matching networks may be required to achieve optimal performance. Consult MACOM's application notes for guidance.
  • Adjust the Vdd voltage and bias current to achieve the desired noise figure and gain while minimizing power consumption. Consult MACOM's application notes for guidance.
