MADR-009269-000100 - MACOM

Description: OUTLINE FET AND PIN DRIVER.

Download MADR-009269-000100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

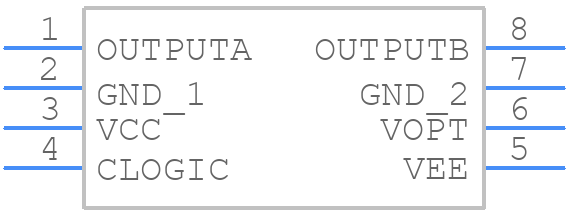

Symbol
MADR-009269-000100 - MACOM - PCB symbol
click to zoom
PCB Footprints
MADR-009269-000100 - MACOM PCB footprint - Small Outline Packages - Small Outline Packages - soic-8--
click to zoom
3D Models
MADR-009269-000100 - MACOM - 3D model - Small Outline Packages - soic-8--
click to zoom

MADR-009269-000100 Details

  • Manufacturer Part Number:

    MADR-009269-000100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    MACOM

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

MADR-009269-000100 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed layout guide is available upon request.
  • The MADR-009269-000100 requires a bias voltage of 5V and a bias current of 350mA. Ensure the voltage regulator is stable and can provide the required current. A biasing circuit diagram is available in the application note.
  • The MADR-009269-000100 can handle up to 10 dBm of input power. Exceeding this limit may cause compression or damage to the amplifier.
  • Common issues include overheating, oscillation, or reduced gain. Check the biasing, ensure proper heat sinking, and verify the input/output impedance matching. Consult the troubleshooting guide in the application note for more information.
  • Yes, the MADR-009269-000100 is designed for high-reliability applications and is qualified to various industry standards, including MIL-STD-883 and ESCC 22100. Contact MACOM for more information on the qualification process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MADR-009269-000100 Overview

Use the download button to access the MADR-009269-000100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MADR-, or try a keyword search, such as Other Interface ICs
