- Part Number MADR-011020-TR1000
- Manufacturer MACOM
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - Lead-Free 4 mm 16-Lead PQFN†
- Released Date Oct 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MADR-011020-TR1000 Details
-
Manufacturer Part Number:
MADR-011020-TR1000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-16
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2018-12-25
-
Manufacturer:
MACOM
-
Interface IC Type:
INTERFACE CIRCUIT
MADR-011020-TR1000 Frequently Asked Questions (FAQs)
-
MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed layout guide is available upon request.
-
The MADR-011020-TR1000 requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly connected to the bias circuit.
-
The recommended operating temperature range for the MADR-011020-TR1000 is -40°C to 85°C. Operating outside this range may affect device performance and reliability.
-
MACOM recommends following standard ESD handling procedures, including using an ESD wrist strap or mat, and storing the device in an anti-static bag or container.
-
The typical lead time for delivery of the MADR-011020-TR1000 is 12-14 weeks. However, this may vary depending on the quantity and availability of the device.
Trust Checks
Community Provided
System Verified
Community Approved
MADR-011020-TR1000 Overview

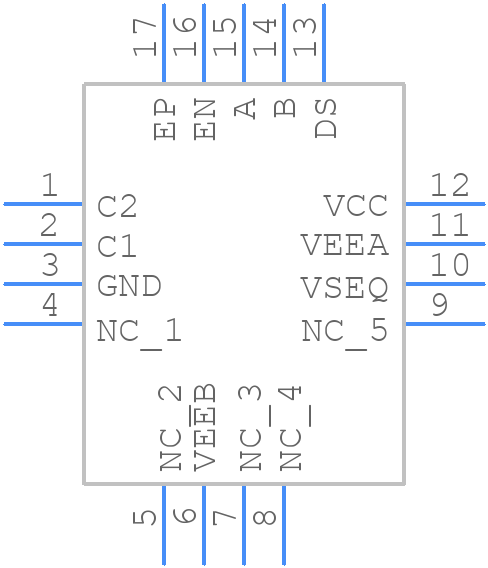

Use the download button to access the MADR-011020-TR1000 schematic symbol, PCB footprint, and 3D model.
