MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed layout guide is available in the MACOM application note AN-2171.
The MADR-000006 requires a bias voltage of 5V and a bias current of 350mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly connected to the bias circuit.
The recommended operating temperature range for the MADR-000006 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
MACOM provides a troubleshooting guide in the device's datasheet. Common issues include improper biasing, incorrect PCB layout, and ESD damage. Consult the datasheet and application notes for guidance on troubleshooting and repair.
Yes, the MADR-000006 can be used in a push-pull configuration. However, ensure that the device is properly matched and biased, and that the PCB layout is designed to minimize parasitic inductance and capacitance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MADRCC0006 Overview

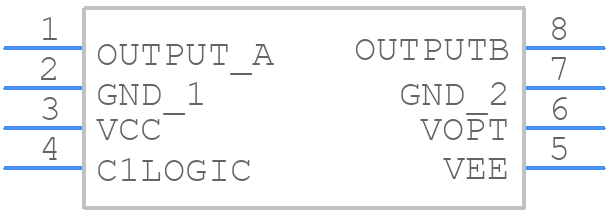

Use the download button to access the MADRCC0006 schematic symbol, PCB footprint, and 3D model.
