MADRCC0007 - MACOM

Description: High Speed CMOS Technology  Quad Channel  Positive Voltage Control  Low Power Dissipation  Low Cost Plastic SOIC-16 Package  100% Matte Tin Plating over Copper  Halogen-Free ―Green‖ Mold Compound  260°C Reflow Compatible  RoHS* Compliant Version of SWD-119

Download MADRCC0007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

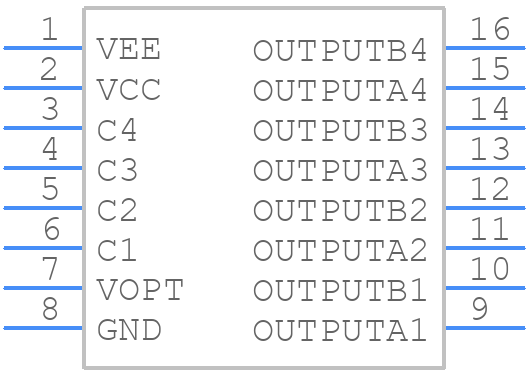

MADRCC0007 - MACOM - PCB symbol
click to zoom
PCB Footprints
MADRCC0007 - MACOM PCB footprint - Small Outline Packages - Small Outline Packages - Lead-Free, SOIC-16
click to zoom
3D Models
MADRCC0007 - MACOM - 3D model - Small Outline Packages - Lead-Free, SOIC-16
click to zoom

MADRCC0007 Details

  • Manufacturer Part Number:

    MADRCC0007

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, MS-012AC, SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    MACOM

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
