MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane or a heat sink.
Use a 50-ohm microstrip line or a coplanar waveguide to match the input and output impedance of the amplifier. The datasheet provides a recommended PCB layout and component values for impedance matching.
The maximum safe operating temperature for the MADS-011010-14150T is 85°C. Operating above this temperature may reduce the device's reliability and lifespan.
Yes, the MADS-011010-14150T can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper impedance matching and thermal management.
The recommended biasing scheme is to use a voltage regulator to set the Vdd voltage to 12V, and a resistor network to set the Vgg voltage to around 3.5V. The datasheet provides a detailed biasing diagram and component values.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MADS-011010-14150T Overview

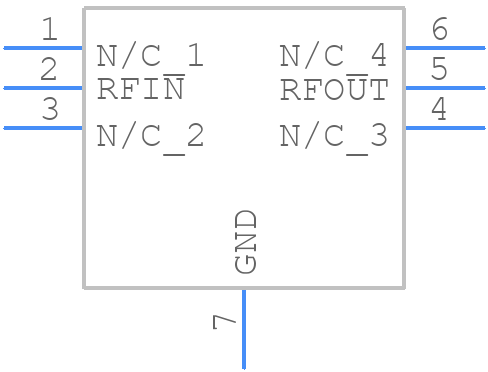

Use the download button to access the MADS-011010-14150T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MADS-,
or try a keyword search, such as RF/Microwave Limiters
