MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
MACOM recommends attaching the device to a heat sink or a thermal pad, and ensuring good airflow around the device to maintain a junction temperature below 125°C.
MACOM recommends using a pi-network or a T-network for input and output matching, with component values dependent on the specific application and frequency range.
MACOM recommends handling the device in an ESD-controlled environment, using ESD-protective packaging and tools, and following proper grounding procedures to prevent ESD damage.
MACOM recommends operating the device within the specified voltage range of 12-15V, with a typical voltage of 12.5V for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MADT-011000-TR1000 Overview

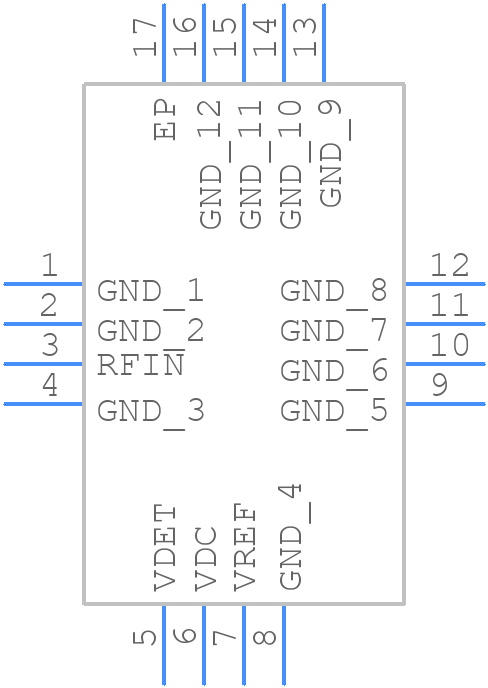

Use the download button to access the MADT-011000-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MADT-,
or try a keyword search, such as RF/Microwave Detectors
