MAFL-011077 - MACOM

Description: RF Diplexer 5MHz ~ 85MHz / 102MHz ~ 1.218GHz 20-SMD, No Lead

Download MAFL-011077 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MAFL-011077 model

Email notifications will be applied after download.

Send part feedback

Symbol

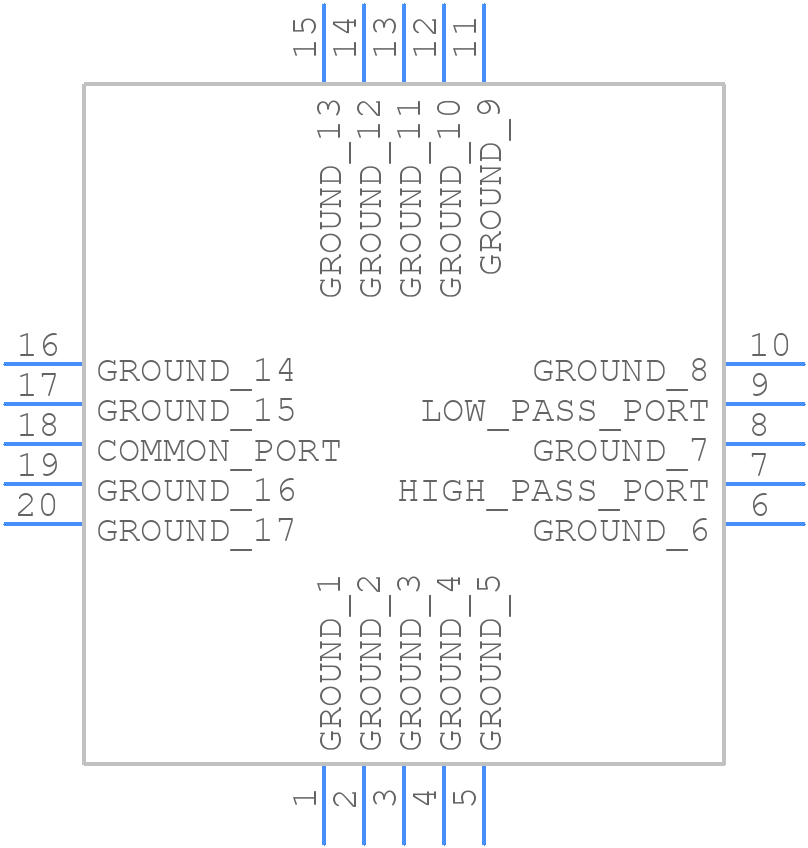

MAFL-011077 - MACOM - PCB symbol

PCB Footprints

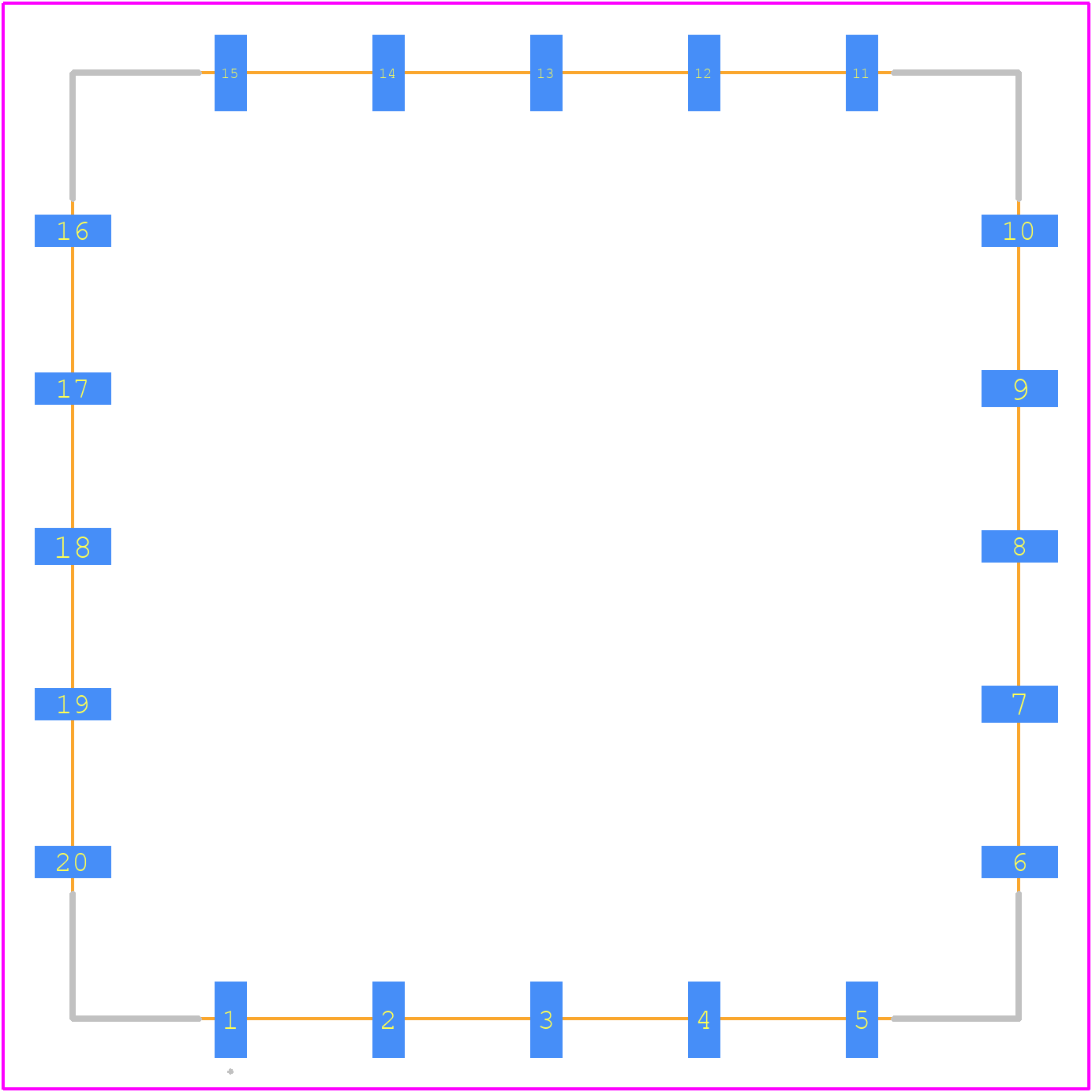

MAFL-011077 - MACOM PCB footprint - Other - Other - 20-SMD_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAFL-011077
Part Number MAFL-011077
Manufacturer MACOM
Pin Count 20
Part Category Filter
Package Category Other
Footprint Name Other - 20-SMD_2026
Released Date Jun 5, 2026
Last Modified Date Jun 5, 2026 12:38 PM UTC
Pinout / Pin List Click Here (Member Only)

MAFL-011077 Details

Manufacturer Part Number:
MAFL-011077
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
MACOM
Filter Type:
DUPLEXER

Trust Checks

Community Provided

System Verified

Community Approved

MAFL-011077 Overview

Use the download button to access the MAFL-011077 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAFL-, or try a keyword search, such as Duplexers
