MACOM provides a recommended PCB layout and land pattern in their application note AN-60-015, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The MAFL-011126 has a thermal resistance of 25°C/W. To ensure proper thermal management, it's recommended to use a heat sink or a thermal pad with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the device and avoid blocking the thermal vias.
The MAFL-011126 is rated for operation from -40°C to 85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
While the MAFL-011126 is primarily designed for linear applications, it can be used in switching applications with caution. However, it's essential to ensure that the device is not subjected to excessive voltage or current stress, and that the switching frequency is within the recommended range.
MACOM provides a troubleshooting guide in their application note AN-60-016, which covers common issues and their solutions. Additionally, it's recommended to consult the device's datasheet and application notes for specific guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAFL-011126 Overview

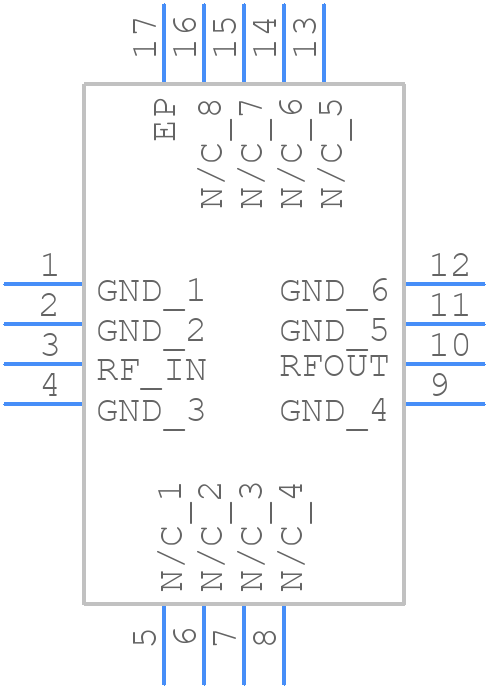

Use the download button to access the MAFL-011126 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAFL-,
or try a keyword search, such as Other RF/Microwave Devices
