MAL219690116E3 - Vishay

MAL219690116E3 Frequently Asked Questions (FAQs)

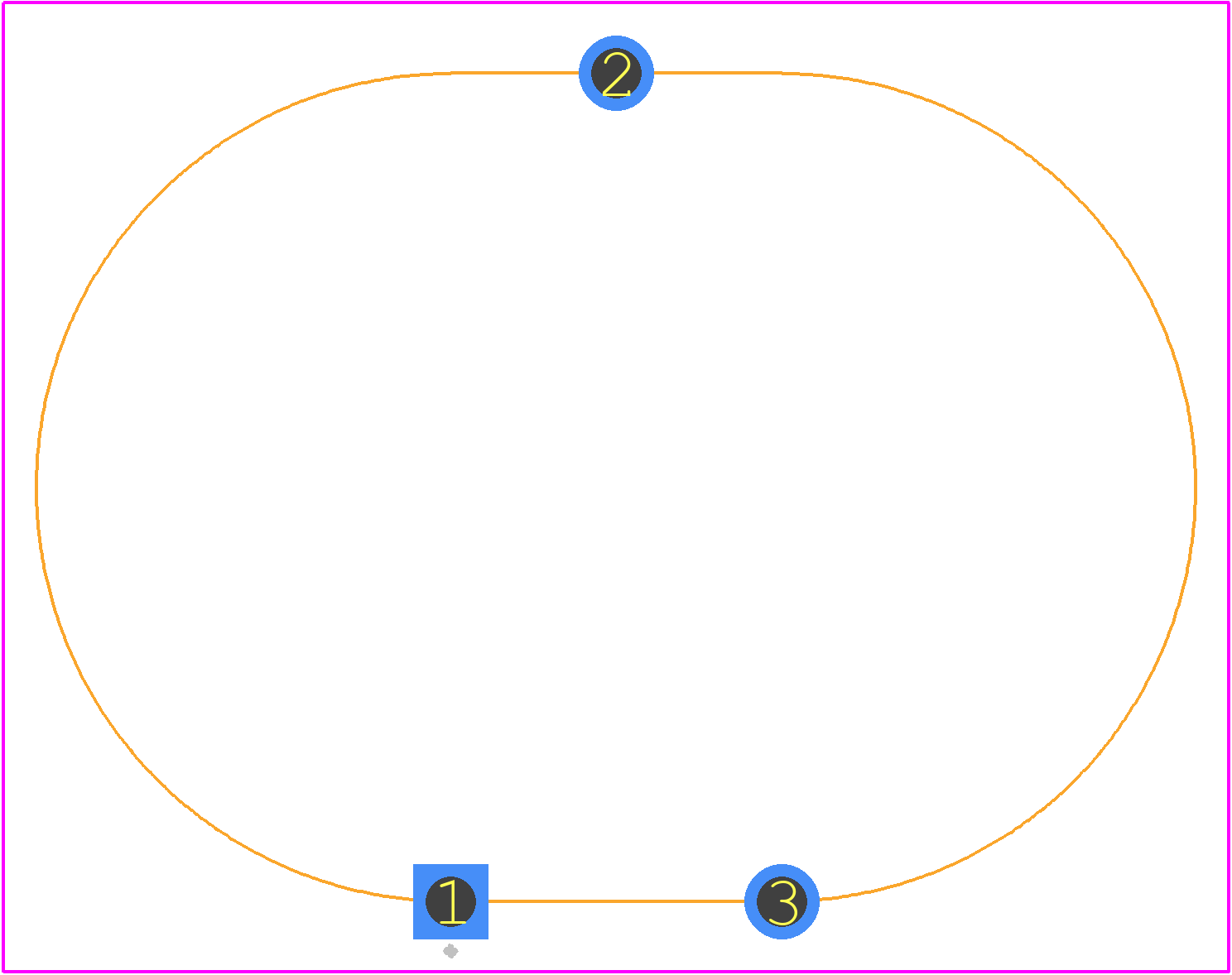

• What is the recommended land pattern for MAL219690116E3?
  The recommended land pattern for MAL219690116E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of Vishay's aluminum electrolytic capacitors.
• How do I handle the capacitor's polarity during assembly?
  The MAL219690116E3 has a polarity marking on the capacitor body, with the positive terminal indicated by a '+' sign or a longer lead. Ensure that the capacitor is installed with the correct polarity to avoid damage or malfunction.
• What is the derating curve for this capacitor?
  Vishay provides a derating curve for their aluminum electrolytic capacitors in their application note AN1003. The derating curve shows the reduction in capacitance and voltage rating as a function of temperature, frequency, and ripple current.
• Can I use the MAL219690116E3 in a high-vibration environment?
  While the MAL219690116E3 is designed to withstand normal vibration, it's essential to consider the specific vibration requirements of your application. Vishay recommends consulting their application note AN1004, which provides guidelines for using aluminum electrolytic capacitors in high-vibration environments.
• How do I store and handle the MAL219690116E3 to prevent damage?
  To prevent damage, store the MAL219690116E3 in a dry, cool place, away from direct sunlight and moisture. Handle the capacitors by the body, avoiding touching the leads or terminals to prevent electrostatic discharge (ESD) damage.
