MACOM provides a recommended PCB layout and land pattern in their application note AN-60-011, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The MAMF-011119-TR1000 has a thermal resistance of 12°C/W. To manage thermal performance, ensure good heat sinking, use a thermal pad or heat sink, and follow proper PCB design and layout guidelines. Additionally, consider using thermal interface materials and thermal vias to dissipate heat effectively.
MACOM recommends using a soldering process with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
Common issues with the MAMF-011119-TR1000 can be troubleshooted by checking the PCB layout, ensuring proper biasing and matching, and verifying the input and output impedances. Additionally, check for signs of overheating, and ensure that the device is operated within its recommended operating conditions.
Yes, the MAMF-011119-TR1000 is a sensitive device and requires proper ESD handling precautions. Use an ESD wrist strap, mat, or workstation, and ensure that all tools and equipment are properly grounded. Avoid touching the device's pins or exposed internal components to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAMF-011119-TR1000 Overview

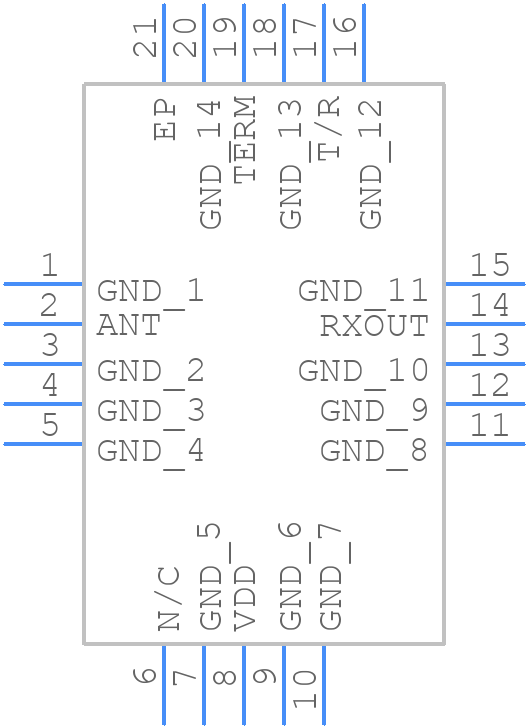

Use the download button to access the MAMF-011119-TR1000 schematic symbol, PCB footprint, and 3D model.
