Part Image

MAMX-011126-TR0500 - MACOM

Description: Low Conversion Loss: 8.5 dB • LO Drive Level: +7 dBm • IIP3: +14 dBm • Wide IF Bandwidth: DC to 8 GHz • High Isolation • Lead-Free 3 mm 12-lead AQFN package • RoHS* Compliant

Download MAMX-011126-TR0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

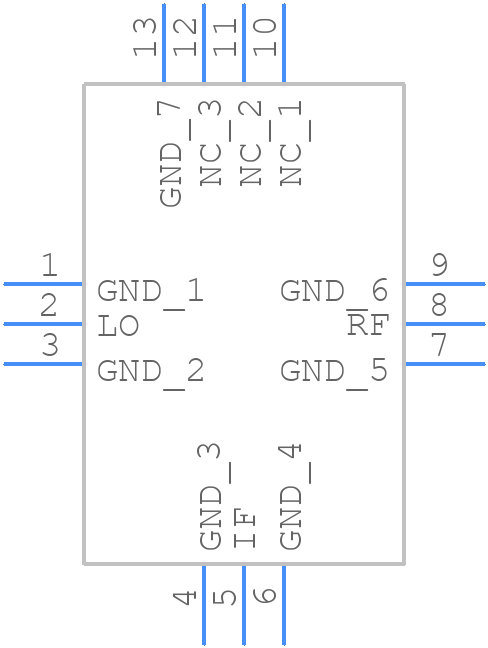

Symbol
MAMX-011126-TR0500 - MACOM - PCB symbol
click to zoom
PCB Footprints
MAMX-011126-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead QFN
click to zoom
3D Models
MAMX-011126-TR0500 - MACOM - 3D model - Quad Flat No-Lead - 12-Lead QFN
click to zoom

MAMX-011126-TR0500 Details

  • Manufacturer Part Number:

    MAMX-011126-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    MACOM

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAMX-011126-TR0500 Overview

Use the download button to access the MAMX-011126-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAMX-, or try a keyword search, such as RF/Microwave Mixers
