MAOC-009260-TR0500 - MACOM

Description: Voltage Controlled Oscillator 6.1 – 7.0 GHz

Download MAOC-009260-TR0500 Model

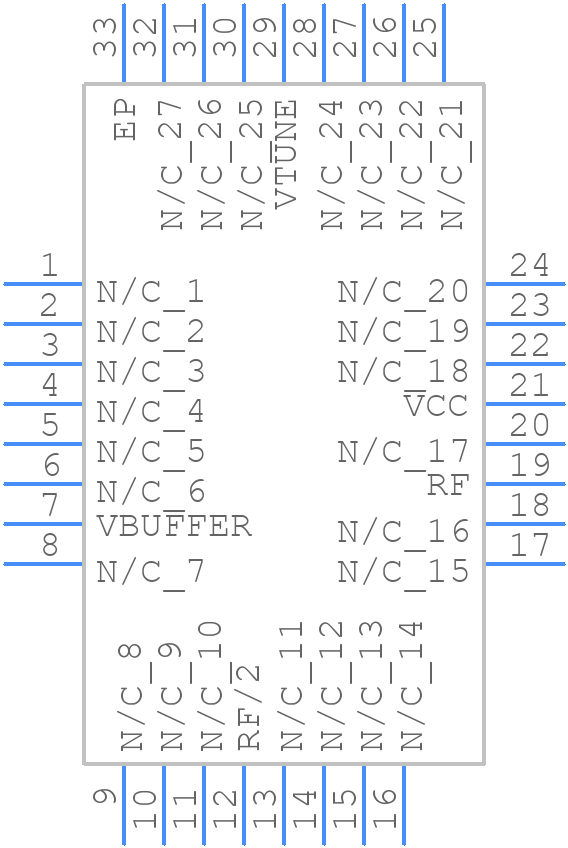

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAOC-009260-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead PQFN
click to zoom
3D Models
MAOC-009260-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - 32-Lead PQFN
click to zoom

MAOC-009260-TR0500 Details

  • Manufacturer Part Number:

    MAOC-009260-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    MACOM

  • YTEOL:

    8.65

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    1 V

  • Modulation Sensitivity:

    130 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    7000 MHz

  • Operating Frequency-Min:

    6100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    9 dBm

  • Phase Noise:

    -92 dBc/Hz

  • Physical Dimension:

    5.0mm x 5.0mm x 0.9mm

  • Supply Current-Max:

    175 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

MAOC-009260-TR0500 Frequently Asked Questions (FAQs)

  • A 50-ohm microstrip line with a 0.5 mm width and a 0.8 mm spacing from the ground plane is recommended for optimal performance. Additionally, a via-stitching pattern around the device can help reduce electromagnetic radiation.
  • A heat sink or thermal pad is recommended to maintain a junction temperature below 150°C. Ensure good thermal contact between the device and the heat sink, and consider using thermal interface material for optimal heat transfer.
  • A 50-ohm source and load impedance is recommended, with a drive signal of 0 dBm to 10 dBm. A DC blocking capacitor and a bias-T network can be used to provide the necessary DC voltage and impedance matching.
  • Common issues include overheating, oscillation, and poor gain. Check for proper thermal management, ensure the device is properly biased, and verify the input and output impedance matching. Use a spectrum analyzer to identify any unwanted signals or oscillations.
