MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using a thermal management system, and ensure that the PCB is designed to minimize thermal gradients.
The MAOC-009268-TR0500 is commonly used in high-frequency and high-power applications, such as microwave radios, satellite communications, and radar systems. It's also used in test and measurement equipment, and in military and aerospace applications.
To troubleshoot common issues, start by verifying the PCB layout and ensuring that the device is properly biased. Check for any signs of overheating, and ensure that the input and output impedances are properly matched. If issues persist, consult MACOM's application notes and technical support resources.
MACOM provides reliability data and MTBF estimates for the MAOC-009268-TR0500. According to MACOM's datasheet, the device has a typical MTBF of 100 million hours at 40°C. However, actual reliability may vary depending on the application, operating conditions, and quality of the PCB assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAOC-009268-TR0500 Overview

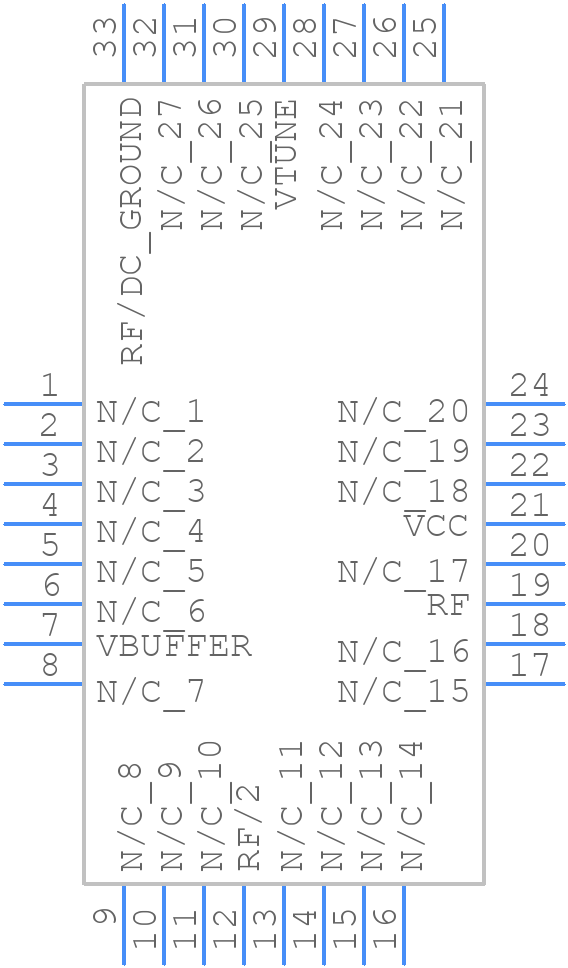

Use the download button to access the MAOC-009268-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAOC-,
or try a keyword search, such as Voltage Controlled Oscillators
