MAPC-A1000-AD000 - MACOM

Description: RF Amplifier Amplifier, 25W, DC-2.7GHz, GaN-SiC, DFN

Download MAPC-A1000-AD000 Model
Schematic

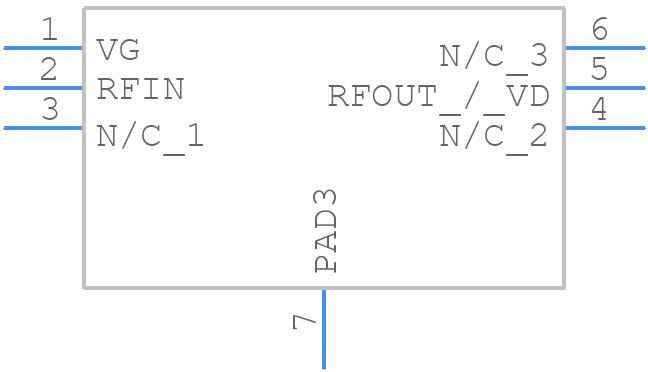

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

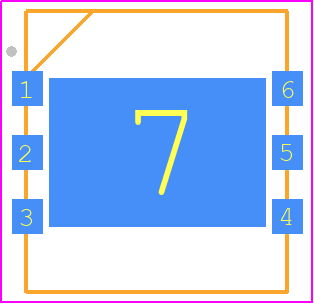

MAPC-A1000-AD000 - MACOM PCB footprint - Small Outline No-lead - Small Outline No-lead - MAPC-A1000-AD000
click to zoom
3D Models
MAPC-A1000-AD000 - MACOM  - 3D model - Small Outline No-lead - MAPC-A1000-AD000
click to zoom

MAPC-A1000-AD000 Details

  • Manufacturer Part Number:

    MAPC-A1000-AD000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-6

  • Manufacturer:

    MACOM

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12.8 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC6,.27,63

  • Packing Method:

    BULK

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    HEMT

  • VSWR-Max:

    10

MAPC-A1000-AD000 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
  • The MAPC-A1000-AD000 requires a bias tee or a DC block to provide the necessary DC voltage and current. Ensure the bias voltage is within the recommended range (Vd=12V, Id=400mA) and the DC block is properly designed to prevent RF signal leakage.
  • The MAPC-A1000-AD000 is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance and power handling at higher temperatures to ensure reliability and prevent thermal runaway.
  • Yes, the MAPC-A1000-AD000 can be used in a push-pull configuration to achieve higher power output and improved linearity. However, this requires careful design and layout consideration to ensure proper phasing and impedance matching.
  • MACOM provides a recommended matching network design in the application note. The input matching network should be designed to provide a conjugate match to the device's input impedance, while the output matching network should be designed to provide a 50Ω match to the load.
