MAPD-008957-CT0012 - MACOM

Description: Signal Conditioning 1-2700MHz 2 way 0Deg. Pwr Dvdr

Download MAPD-008957-CT0012 Model

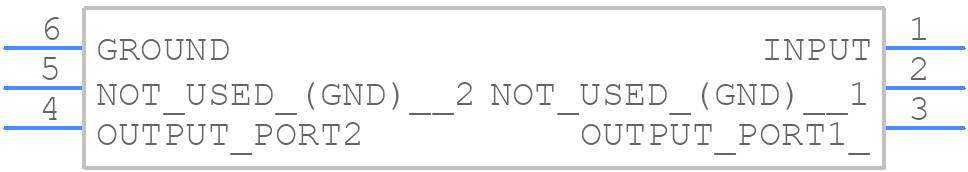

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAPD-008957-CT0012 - MACOM PCB footprint - Other - Other - MAPD-008957-CT0012-2
click to zoom
3D Models
MAPD-008957-CT0012 - MACOM  - 3D model - Other - MAPD-008957-CT0012-2
click to zoom

MAPD-008957-CT0012 Details

  • Manufacturer Part Number:

    MAPD-008957-CT0012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PACKAGE-6

  • Pin Count:

    6

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    MACOM

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    4.83 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.3 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.81 mm

MAPD-008957-CT0012 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • MACOM recommends using a 50-ohm microstrip line with a width of 1.5 mm to 2.5 mm, and a substrate thickness of 0.5 mm to 1.5 mm. The device should be placed at the center of the PCB, and the input/output lines should be kept as short as possible.
  • The recommended operating temperature range for the MAPD-008957-CT0012 is -40°C to 85°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should ensure proper thermal management to maintain optimal performance.
  • MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input/output lines to protect the device from electrostatic discharge. The user should also follow proper handling and storage procedures to prevent ESD damage.
  • MACOM recommends using a reflow soldering process with a peak temperature of 260°C to 280°C, and a dwell time of 30 seconds to 60 seconds. The user should ensure that the soldering process is compatible with the device's package and the PCB material.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAPD-008957-CT0012 Overview

Use the download button to access the MAPD-008957-CT0012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAPD-, or try a keyword search, such as Other Signal Circuits
