Part Image

MAPD-011007 - MACOM

Description: RF Power Divider 5 MHz ~ 2.15 GHz 6-SMD, No Lead

Download MAPD-011007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

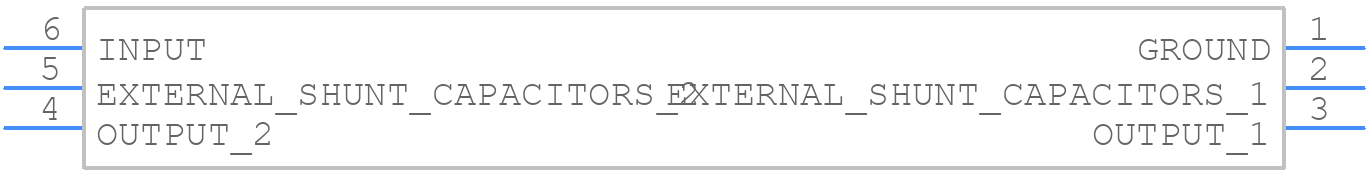

Symbol
MAPD-011007 - MACOM - PCB symbol
click to zoom
PCB Footprints
MAPD-011007 - MACOM PCB footprint - Other - Other - 6-SMD
click to zoom
3D Models
MAPD-011007 - MACOM - 3D model - Other - 6-SMD
click to zoom

MAPD-011007 Details

  • Manufacturer Part Number:

    MAPD-011007

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT PACKAGE-6

  • Country Of Origin:

    Vietnam

  • Manufacturer:

    MACOM

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.98 dBm

  • Insertion Loss-Max:

    3.2 dB

  • Operating Frequency-Max:

    2150 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER

MAPD-011007 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
  • The MAPD-011007 requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device.
  • The MAPD-011007 is rated for operation up to 85°C, but it's recommended to operate it at a maximum temperature of 70°C to ensure optimal performance and reliability.
  • Handle the MAPD-011007 with ESD-protective equipment, such as wrist straps and mats, and ensure the PCB is designed with ESD protection in mind, including the use of ESD-protection diodes and resistors.
  • Store the MAPD-011007 in its original packaging, away from direct sunlight and moisture. Handle the device by the edges, avoiding touching the pins or die, and use anti-static packaging materials.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAPD-011007 Overview

Use the download button to access the MAPD-011007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAPD-, or try a keyword search, such as RF/Microwave Splitter/Combiners
