MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
MACOM provides a recommended PCB layout and impedance matching circuit in the application note AN-60-011. It's essential to follow these guidelines to achieve optimal performance and minimize signal reflections.
Although the datasheet specifies an operating temperature range of -40°C to 85°C, MACOM recommends derating the device's power dissipation above 70°C to ensure reliable operation and prevent thermal runaway.
Yes, the MAPD-011020 can be used in a push-pull configuration, but it's essential to ensure that the device is properly biased and matched to prevent uneven current distribution and potential device damage.
MACOM recommends a voltage-controlled biasing scheme, where the gate voltage is set to around 2-3V, and the drain voltage is set to the desired operating voltage. A current-limiting resistor should be used to prevent excessive current draw.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAPD-011020 Overview

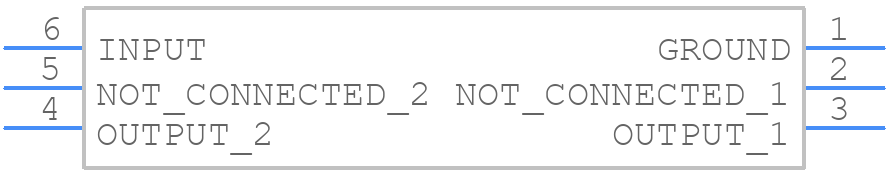

Use the download button to access the MAPD-011020 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAPD-,
or try a keyword search, such as RF/Microwave Splitter/Combiners
