MAPS-010144-TR0500 - MACOM

Description: Phase Detectors / Shifters 2.3-3.8GHz IL:2.5dB 360 in 22.5 steps

Download MAPS-010144-TR0500 Model

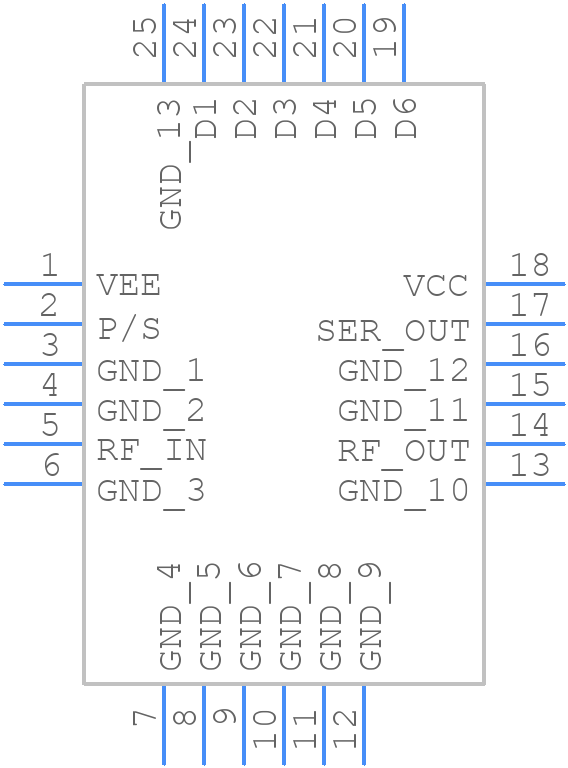

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAPS-010144-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAPS-010163-TR0500
click to zoom
3D Models
MAPS-010144-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - MAPS-010163-TR0500
click to zoom

MAPS-010144-TR0500 Details

  • Manufacturer Part Number:

    MAPS-010144-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGD-2, QFN-24

  • Manufacturer:

    MACOM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    4.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    2300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Phase Shift-Max:

    360 deg

  • RF/Microwave Device Type:

    COAXIAL MECHANICAL PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.3

MAPS-010144-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • The device requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuitry is designed to provide a stable voltage and current to the device. A voltage regulator and a current limiter can be used to achieve this.
  • The device has a nominal input impedance of 50 ohms and an output impedance of 50 ohms. Ensure the input and output matching networks are designed to match these impedances for optimal power transfer and minimal reflections.
  • The device has a built-in thermal shutdown feature that activates when the junction temperature exceeds 150°C. Ensure the system is designed to detect and respond to this feature by reducing power or shutting down the system to prevent damage.
  • MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the device from electrostatic discharge events.
