MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
MACOM recommends attaching the device to a heat sink or a thermal pad, and ensuring good airflow around the device to maintain a junction temperature below 125°C.
MACOM recommends using a pi-network or a T-network for input and output matching, with component values dependent on the specific application and frequency range.
MACOM recommends checking the PCB layout, ensuring proper grounding and decoupling, and verifying the input and output matching networks. Additionally, checking the device's operating conditions, such as voltage and current, can help identify the root cause of the issue.
MACOM recommends storing the device in a dry, cool place, away from direct sunlight and moisture. Handling the device by the body, rather than the leads, and using anti-static wrist straps or mats can prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAPS-010163-TR0500 Overview

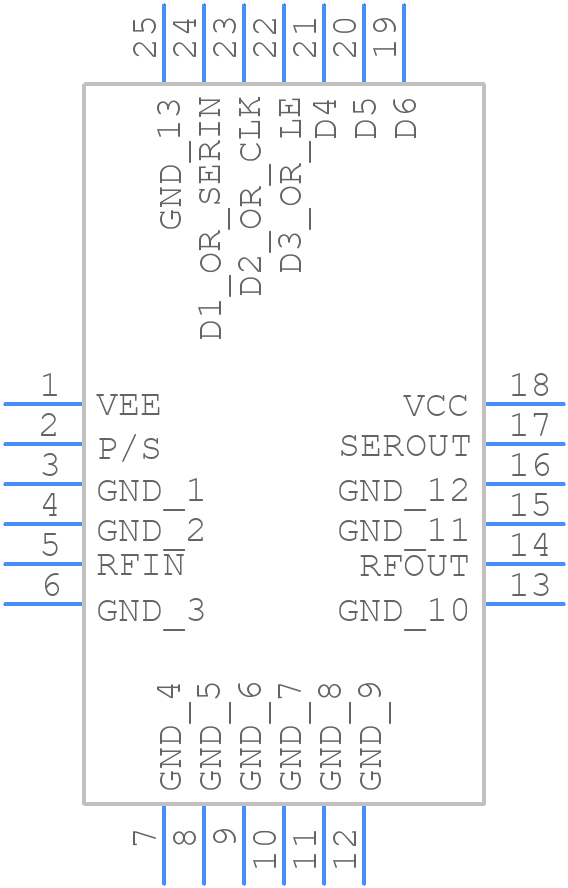

Use the download button to access the MAPS-010163-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAPS-,
or try a keyword search, such as RF/Microwave Phase Shifters
