MAPS-010164-TR0500 - MACOM

Description: Phase Detectors / Shifters 2.3-3.8GHz IL:3.2dB 360 in 22.5 steps

Download MAPS-010164-TR0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

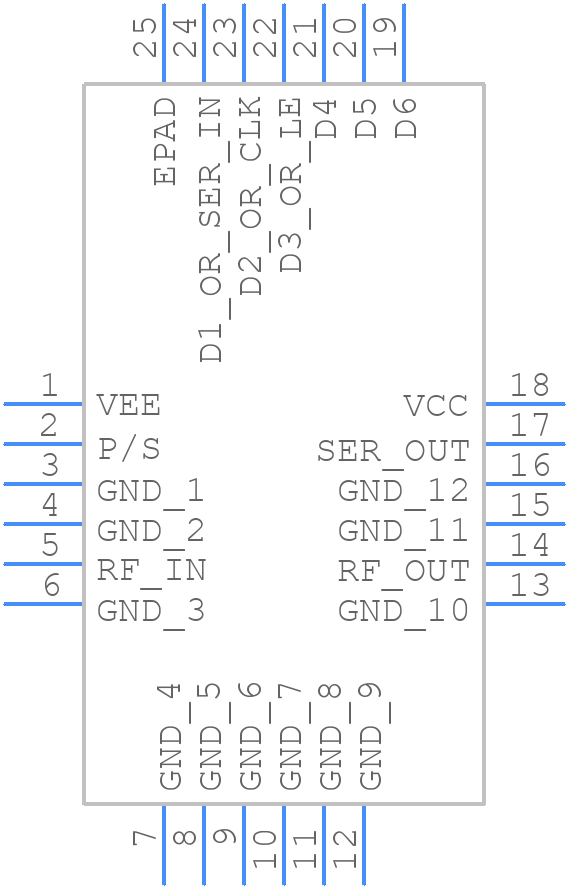

MAPS-010164-TR0500 - MACOM - PCB symbol
click to zoom
PCB Footprints
MAPS-010164-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PQFN_25_MAPS
click to zoom
3D Models
MAPS-010164-TR0500 - MACOM - 3D model - Quad Flat No-Lead - PQFN_25_MAPS
click to zoom

MAPS-010164-TR0500 Details

  • Manufacturer Part Number:

    MAPS-010164-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGD-2, QFN-24

  • Manufacturer:

    MACOM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    4.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    2300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Phase Shift-Max:

    360 deg

  • RF/Microwave Device Type:

    COAXIAL MECHANICAL PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.3

MAPS-010164-TR0500 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Use a heat sink with a thermal conductivity of at least 1 W/m-K and ensure good thermal contact between the device and the heat sink. Keep the ambient temperature below 85°C.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or lower. Impedance matching is crucial for optimal performance.
  • Power up the device in the following sequence: VCC, then VEE, and finally the input signal. Power down in the reverse sequence to prevent damage.
  • Use a soldering iron with a temperature of 250°C or lower. Avoid touching the device's pins or body to prevent damage from electrostatic discharge.
