MAPS-010165-TR0500 - MACOM

Description: Phase Detectors / Shifters 3.5-6.0GHz 6-Bit Step 5.6 deg.

Download MAPS-010165-TR0500 Model

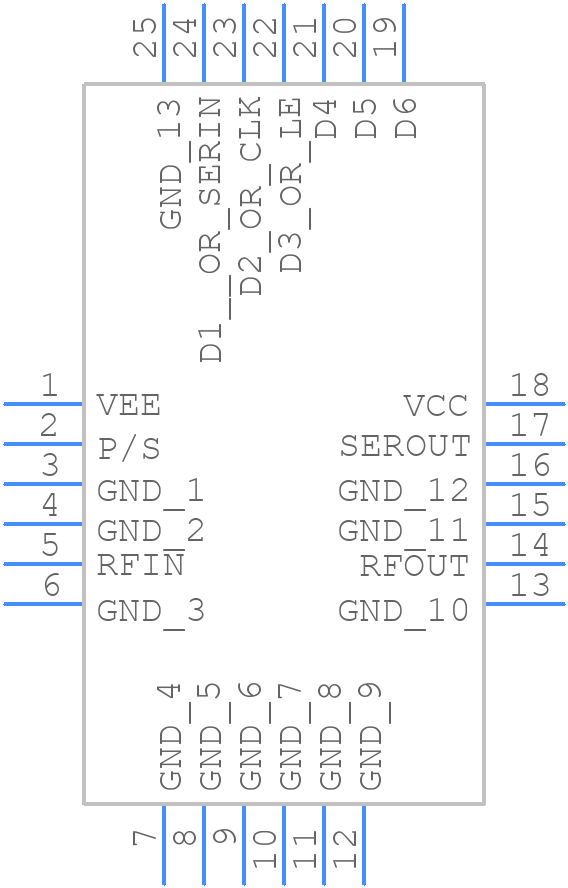

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAPS-010165-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAPS-010165-TR0500
click to zoom
3D Models
MAPS-010165-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - MAPS-010165-TR0500
click to zoom

MAPS-010165-TR0500 Details

  • Manufacturer Part Number:

    MAPS-010165-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    MACOM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    8 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    3500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Shift-Max:

    360 deg

  • Phase Shift-Min:

    5.6 deg

  • Power Supplies:

    +-5 V

  • RF/Microwave Device Type:

    DIGITALLY CONTROLLED PHASE SHIFTER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.8

MAPS-010165-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • The device requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuitry is designed to provide a stable voltage and current to the device.
  • MACOM recommends a 50-ohm input and output impedance matching to ensure maximum power transfer and minimal signal reflection.
  • The device has a built-in thermal shutdown feature that activates when the junction temperature exceeds 150°C. Ensure your design includes a thermal monitoring circuit to detect and respond to thermal shutdown events.
  • MACOM recommends using ESD protection devices with a human body model (HBM) rating of 2kV or higher to protect the device from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAPS-010165-TR0500 Overview

Use the download button to access the MAPS-010165-TR0500 schematic symbol, PCB footprint, and 3D model.
