MAPS-010166-TR0500 - MACOM

Description: Phase Detectors / Shifters 8-12GHz IL 6.5dB 360 Deg 5.6 steps

Download MAPS-010166-TR0500 Model
Schematic

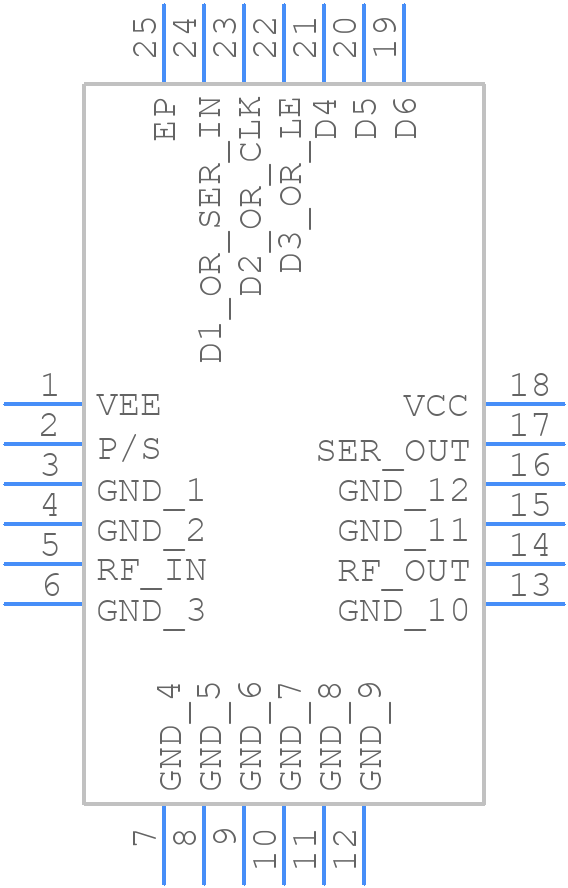

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAPS-010166-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn-24
click to zoom
3D Models
MAPS-010166-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - qfn-24
click to zoom

MAPS-010166-TR0500 Details

  • Manufacturer Part Number:

    MAPS-010166-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGD-2, QFN-24

  • Manufacturer:

    MACOM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    9 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Phase Shift-Max:

    360 deg

  • RF/Microwave Device Type:

    COAXIAL MECHANICAL PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.8

MAPS-010166-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
  • The device requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuitry is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
  • MACOM recommends using a pi-network or a T-network for input and output matching. The specific component values will depend on the application and frequency of operation. Consult the MACOM application note for more information.
  • Handle the device in an ESD-controlled environment, and ensure all equipment and personnel are grounded. Use ESD-protective packaging and handling materials, and follow proper ESD-handling procedures to prevent damage.
  • Store the device in its original packaging, in a dry, cool place. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures. Handle the device by the package, not the leads, to prevent damage.
