MAPS-011007-TR0500 - MACOM

Description: Phase Detectors / Shifters 1.2-1.4 GHz 6 Bit LSB 5.6 deg 360Deg

Download MAPS-011007-TR0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

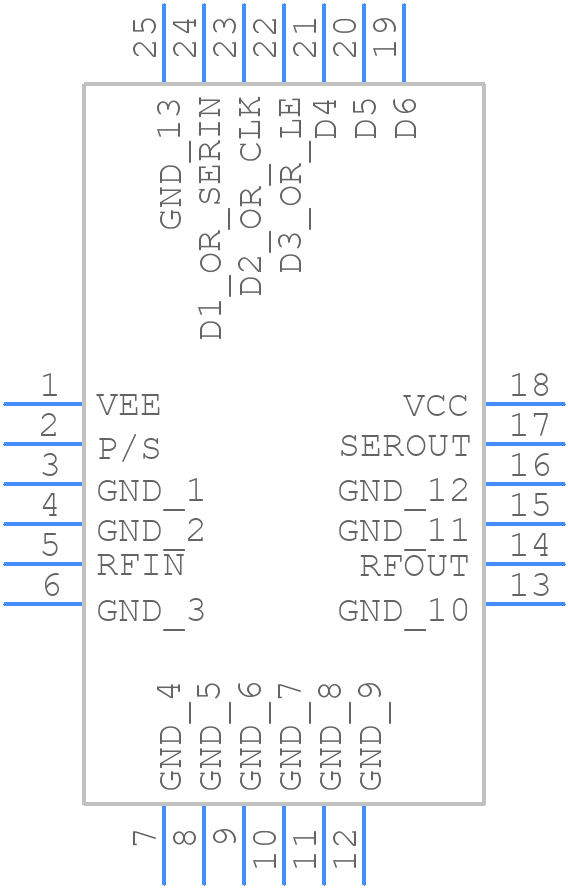

MAPS-011007-TR0500 - MACOM - PCB symbol
click to zoom
PCB Footprints
MAPS-011007-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Lead Free 4 mm 24-Lead PQFN
click to zoom
3D Models
MAPS-011007-TR0500 - MACOM - 3D model - Quad Flat No-Lead - Lead Free 4 mm 24-Lead PQFN
click to zoom

MAPS-011007-TR0500 Details

  • Manufacturer Part Number:

    MAPS-011007-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PQFN-24

  • Manufacturer:

    MACOM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    5.4 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    1400 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Shift-Max:

    360 deg

  • Phase Shift-Min:

    5.6 deg

  • Power Supplies:

    +-5 V

  • RF/Microwave Device Type:

    DIGITALLY CONTROLLED PHASE SHIFTER

  • Supply Current-Max:

    0.005 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.4

MAPS-011007-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
  • MACOM recommends attaching the device to a heat sink or a thermal pad, and ensuring good airflow around the device to maintain a junction temperature below 125°C.
  • MACOM recommends using a pi-network or a T-network for input and output matching, with component values dependent on the specific application and frequency range.
  • MACOM recommends checking the device's biasing, ensuring proper input and output matching, and verifying the device's operating temperature and power supply voltage.
  • Yes, MACOM recommends taking standard ESD precautions, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging and storage, to prevent damage to the device.
