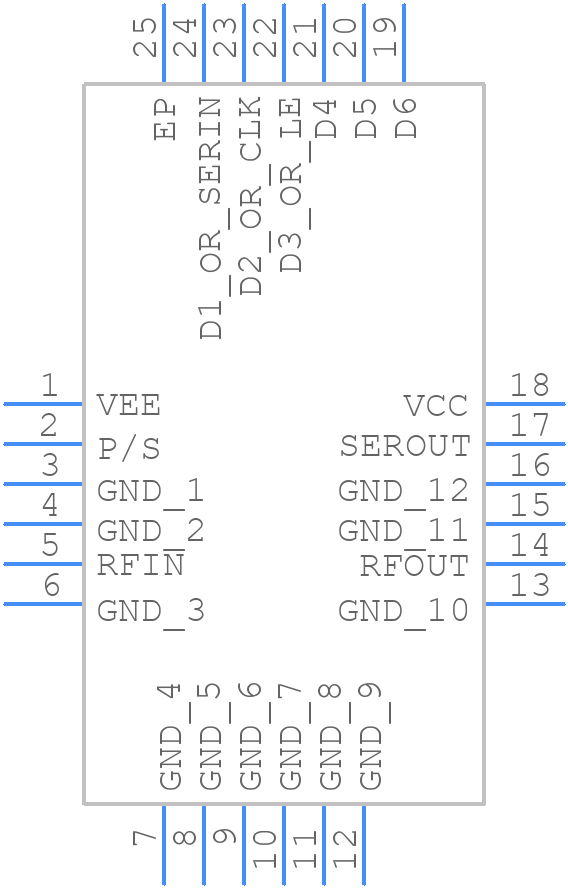

MAPS-011008-TR0500 - MACOM

MAPS-011008-TR0500 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the MAPS-011008-TR0500?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
• How do I ensure the MAPS-011008-TR0500 is properly biased for optimal performance?
  The device requires a single +5V power supply. A 10uF decoupling capacitor should be placed close to the device, and a 1kΩ resistor should be used to bias the output stage. The input stage should be biased with a 1kΩ resistor and a 10uF capacitor.
• What is the maximum operating temperature range for the MAPS-011008-TR0500?
  The device is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at temperatures above +70°C.
• How do I troubleshoot common issues with the MAPS-011008-TR0500, such as oscillations or instability?
  Check the PCB layout for any signs of resonance or oscillation. Ensure that the device is properly biased and that the input and output tracks are properly terminated. Also, check for any signs of overheating or thermal issues.
• Can I use the MAPS-011008-TR0500 in a push-pull configuration?
  Yes, the device can be used in a push-pull configuration. However, it's recommended to use a balun or a transformer to ensure proper impedance matching and to prevent any potential oscillations.
