MAQ5281-5.0YMME - Microchip

Description: Micrel MAQ5281-5.0YMME, Single Low Dropout Voltage Regulator, 25mA 5 V, ±5%, 8-Pin MSOP

Download MAQ5281-5.0YMME Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

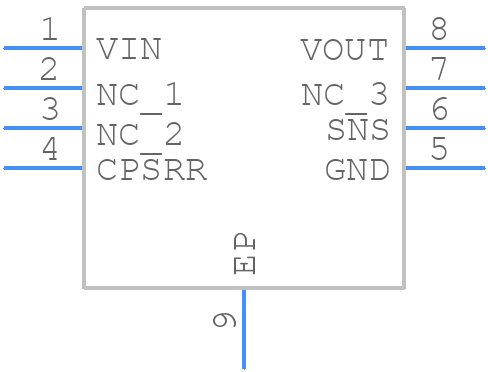

Symbol
MAQ5281-5.0YMME - Microchip - PCB symbol
click to zoom
PCB Footprints
MAQ5281-5.0YMME - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin Exposed Pad (ePad)-1 MSOP (MME)
click to zoom
3D Models
MAQ5281-5.0YMME - Microchip - 3D model - Small Outline Packages - 8-pin Exposed Pad (ePad)-1 MSOP (MME)
click to zoom

MAQ5281-5.0YMME Details

  • Manufacturer Part Number:

    MAQ5281-5.0YMME

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    3 V

  • Dropout Voltage1-Nom:

    2 V

  • Input Voltage Absolute-Max:

    125 V

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Line Regulation-Max:

    2.75%

  • Load Regulation-Max:

    0.05%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.025 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.04 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    5%

  • Width:

    3 mm

MAQ5281-5.0YMME Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's application note (AN2005) and layout checklist (LCC-001). Following these guidelines ensures optimal performance, minimizes noise, and reduces electromagnetic interference (EMI).
  • Proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking the device's thermal pad. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • Operating the device beyond its recommended conditions can lead to reduced performance, decreased lifespan, and potential damage. It's essential to adhere to the specified operating conditions to ensure reliable operation and prevent premature failure.
  • Start by reviewing the datasheet and application notes to ensure correct usage and configuration. Then, use debugging tools like oscilloscopes, logic analyzers, or simulation software to identify the root cause of the issue. Microchip's technical support and online resources can also provide valuable assistance.
  • Yes, the MAQ5281-5.0YMME is a high-frequency device, and proper EMI/EMC design practices are essential. Follow Microchip's guidelines for PCB layout, shielding, and filtering to minimize electromagnetic radiation and ensure compliance with relevant standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAQ5281-5.0YMME Overview

Use the download button to access the MAQ5281-5.0YMME schematic symbol, PCB footprint, and 3D model.
