MAR-1SM+ - Mini-Circuits

Description: Low Current MMIC Amplifier, DC to 1 GHz

Download MAR-1SM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

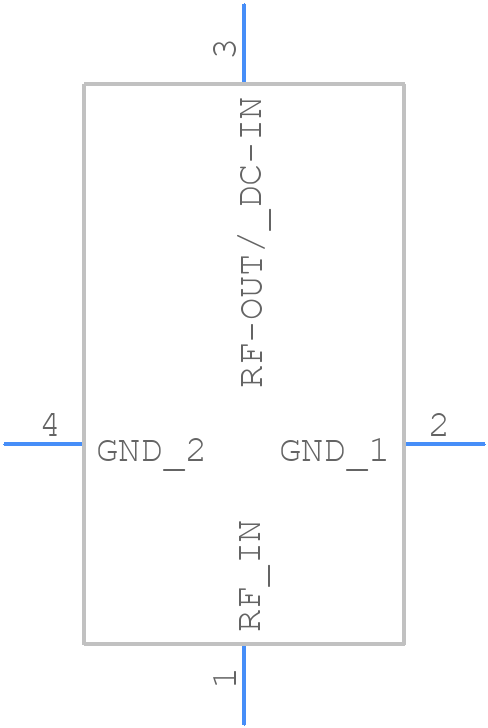

Symbol
MAR-1SM+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MAR-1SM+ - Mini-Circuits PCB footprint - Other - Other - MAR-1SM+-1
click to zoom

MAR-1SM+ Details

  • Manufacturer Part Number:

    MAR-1SM+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.46

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Gain:

    15 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e2

  • Operating Frequency-Max:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    TIN SILVER OVER NICKEL

  • VSWR-Max:

    1.2

MAR-1SM+ Frequently Asked Questions (FAQs)

  • The MAR-1SM+ can operate from -40°C to +85°C, but the recommended operating temperature range is -20°C to +70°C for optimal performance.
  • The MAR-1SM+ requires a bias voltage of 5V to 12V, and a bias current of 10mA to 20mA. Ensure the bias voltage is stable and the bias current is within the recommended range for optimal performance.
  • Use a multi-layer PCB with a solid ground plane, and ensure the MAR-1SM+ is placed close to the ground plane. Use short, direct traces for the RF signals, and avoid vias and right-angle bends. Ground the MAR-1SM+ case to the PCB ground plane using a low-inductance path.
  • Use a π-network or a T-network matching circuit to match the MAR-1SM+ to a 50Ω system. The exact component values will depend on the specific application and frequency range.
  • The MAR-1SM+ can handle input powers up to +20dBm (100mW) without damage, but the recommended maximum input power is +15dBm (30mW) for optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAR-1SM+ Overview

Use the download button to access the MAR-1SM+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MAR-1, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
