MAR-6SM+ Details
-
Manufacturer Part Number:
MAR-6SM+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.65
-
Additional Feature:
LOW NOISE
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
15 dB
MAR-6SM+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The MAR-6SM+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer for assistance.
-
The MAR-6SM+ can handle up to 2W of continuous power. However, it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliability.
-
While the MAR-6SM+ is primarily designed for linear applications, it can be used in switching applications with some precautions. Ensure that the switching frequency is within the device's bandwidth, and consider adding external components to absorb voltage transients.
-
Ensure good thermal conductivity by using a heat sink or a thermal pad on the PCB. Keep the device away from heat sources, and consider using a thermal interface material to improve heat transfer.
Trust Checks
Expert Contribution
System Verified
Community Approved
MAR-6SM+ Overview

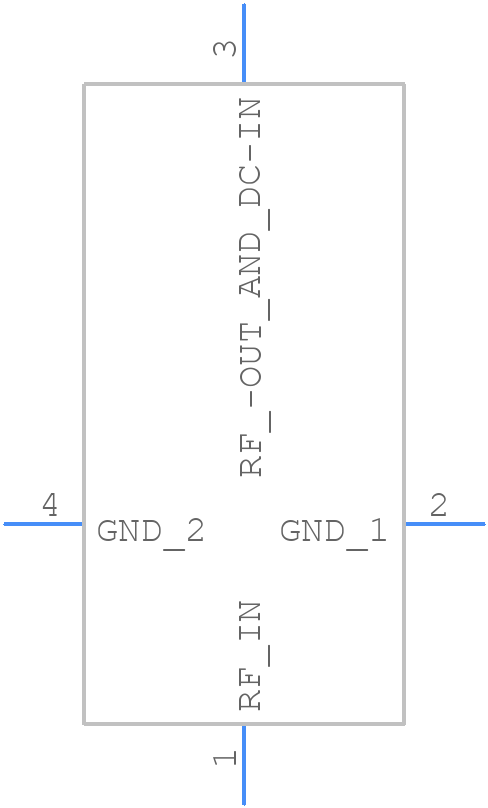

Use the download button to access the MAR-6SM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAR-6,
or try a keyword search, such as RF/Microwave Amplifiers
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
