MAR-8ASM+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, DC - 1000 MHz, 50?

Download MAR-8ASM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

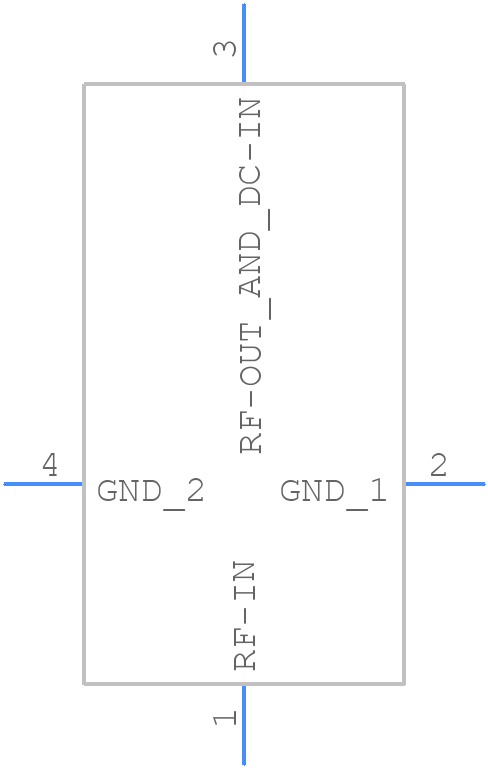

MAR-8ASM+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MAR-8ASM+ - Mini-Circuits PCB footprint - Other - Other - WW107_2024
click to zoom
3D Models
MAR-8ASM+ - Mini-Circuits - 3D model - Other - WW107_2024
click to zoom

MAR-8ASM+ Details

  • Manufacturer Part Number:

    MAR-8ASM+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE WW107, 4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.46

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    20 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SL,4GW-LD,.085CIR

  • Power Supplies:

    3.7 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.8

MAR-8ASM+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The MAR-8ASM+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The MAR-8ASM+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • Yes, the MAR-8ASM+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's bandwidth (DC to 8 GHz). Additionally, consider the device's rise and fall times, and ensure that the switching signal is properly terminated to prevent reflections.
  • To troubleshoot issues, start by verifying the device's soldering and PCB layout. Check for any signs of overheating, and ensure that the device is properly biased. Use a spectrum analyzer or a vector network analyzer to measure the device's frequency response and identify any anomalies.
