The recommended PCB footprint for the MASW-000936-14000T is a 4-pad layout with a pad size of 0.5mm x 0.5mm and a pitch of 0.65mm. It's essential to follow the recommended footprint to ensure proper thermal and electrical performance.
To ensure proper biasing, the MASW-000936-14000T requires a voltage supply of 5V ± 10% and a current of 140mA ± 10%. Additionally, it's essential to use a low-noise power supply and to decouple the power supply lines with capacitors to minimize noise and ensure stable operation.
The maximum operating temperature for the MASW-000936-14000T is 85°C. It's essential to ensure that the device operates within the recommended temperature range to prevent thermal damage and ensure reliable operation.
To prevent damage, handle the MASW-000936-14000T by the body, avoiding touching the leads or electrical connections. Store the devices in an anti-static bag or wrap them in anti-static material to prevent electrostatic discharge (ESD) damage.
The recommended reflow soldering profile for the MASW-000936-14000T is a peak temperature of 260°C ± 5°C, with a dwell time above 220°C of 20-30 seconds. It's essential to follow the recommended reflow profile to ensure reliable solder joints and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MASW-000936-14000T Overview

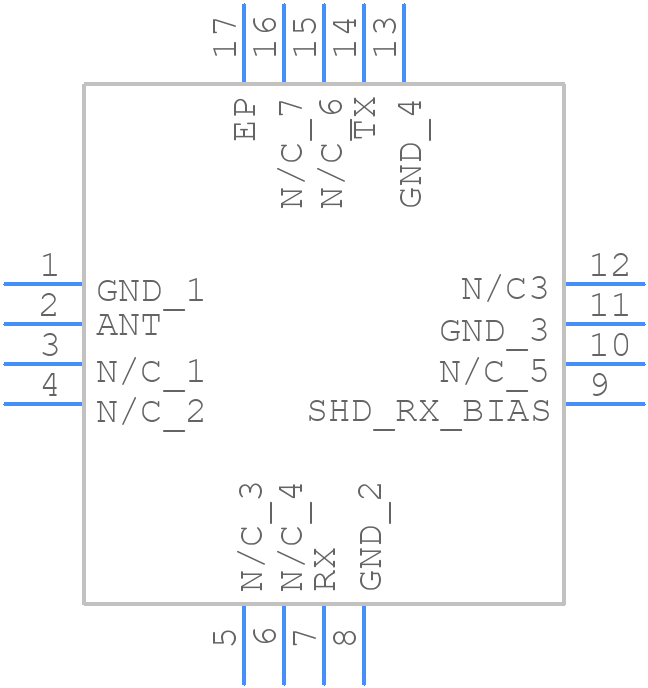

Use the download button to access the MASW-000936-14000T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASW-,
or try a keyword search, such as RF/Microwave Switches
