MACOM provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and prevent thermal and electrical issues.
The MASW-007075-000100 has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A heat sink or thermal interface material can be used to improve heat dissipation. Ensure that the thermal design is adequate to keep the junction temperature below the recommended maximum of 150°C.
Although the datasheet specifies an operating frequency range of 7.0-7.5 GHz, the device can be used up to 8.5 GHz with some degradation in performance. However, it's essential to consult with MACOM's application engineers to determine the feasibility of using the device at frequencies above 7.5 GHz.
The recommended biasing conditions for the MASW-007075-000100 are Vd = 5V, Id = 200mA, and Vg = -2V. However, the optimal biasing conditions may vary depending on the specific application and operating frequency. It's recommended to consult with MACOM's application engineers or perform characterization to determine the optimal biasing conditions.
The typical noise figure of the MASW-007075-000100 is around 2.5 dB, but it can vary depending on the operating frequency, biasing conditions, and temperature. For more accurate information, consult the datasheet or contact MACOM's application engineers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MASW-007075-000100 Overview

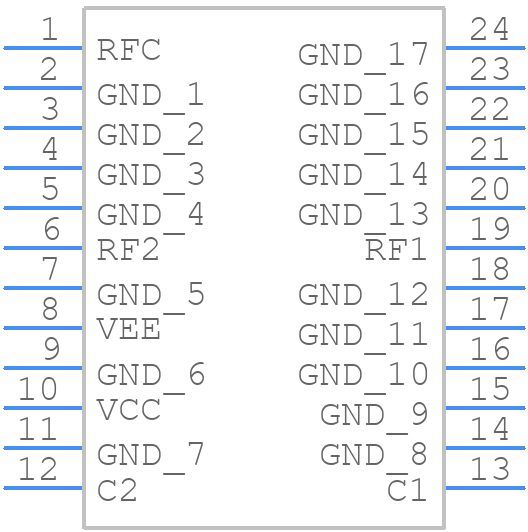

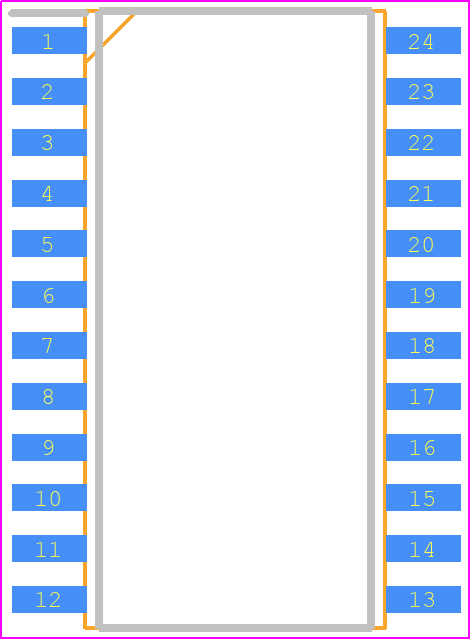

Use the download button to access the MASW-007075-000100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASW-,
or try a keyword search, such as RF/Microwave Switches
