MASW-007921-TR3000 - MACOM

Description: RF Switch ICs DC-7.0GHz ISO 27dB IL .7dB @3.5GHz

Download MASW-007921-TR3000 Model

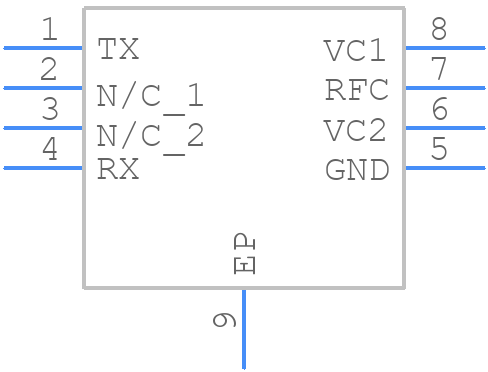

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MASW-007921-TR3000 - MACOM PCB footprint - Small Outline No-lead - Small Outline No-lead - Lead Free 2 mm 8-lead PDFN _2021
click to zoom
3D Models
MASW-007921-TR3000 - MACOM  - 3D model - Small Outline No-lead - Lead Free 2 mm 8-lead PDFN _2021
click to zoom

MASW-007921-TR3000 Details

  • Manufacturer Part Number:

    MASW-007921-TR3000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-229VCCD, DFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    MACOM

  • YTEOL:

    6.1

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    40 dBm

  • Insertion Loss-Max:

    0.85 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    7000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPDT

  • Terminal Finish:

    MATTE TIN

  • VSWR-Max:

    1.43
