MASW-008322-TR1000 - MACOM

Description: RF Switch ICs DC-20GHz SPDT GaAs IL 2.5dB max

Download MASW-008322-TR1000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

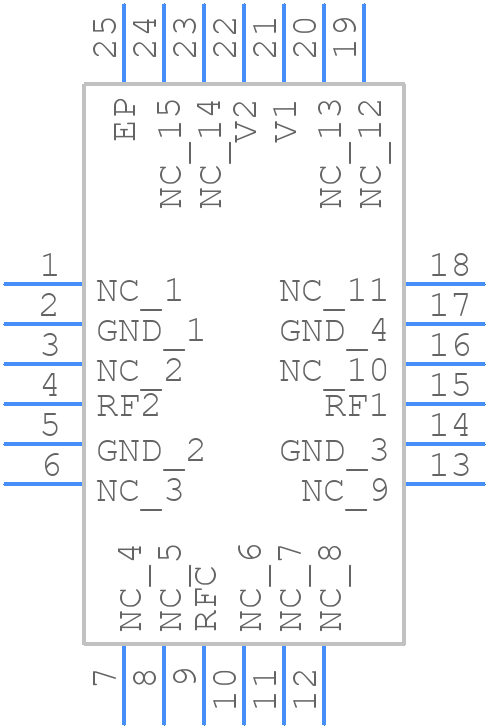

Symbol
MASW-008322-TR1000 - MACOM - PCB symbol
click to zoom
PCB Footprints
MASW-008322-TR1000 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4 mm 24-Lead PQFN_1
click to zoom
3D Models
MASW-008322-TR1000 - MACOM - 3D model - Quad Flat No-Lead - 4 mm 24-Lead PQFN_1
click to zoom

MASW-008322-TR1000 Details

  • Manufacturer Part Number:

    MASW-008322-TR1000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    MACOM

  • YTEOL:

    7.8

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    2.5 dB

  • Isolation-Min:

    39 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.012 µs

  • Operating Frequency-Max:

    20000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    -5/GND V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    MATTE TIN

  • VSWR-Max:

    2

MASW-008322-TR1000 Frequently Asked Questions (FAQs)

  • MACOM recommends a specific PCB layout and land pattern to ensure optimal performance. Engineers can request the recommended layout and pattern from MACOM's application engineers or technical support team.
  • Proper thermal management is crucial for the MASW-008322-TR1000. Engineers should ensure good heat sinking, use thermal interface materials, and follow MACOM's recommended thermal design guidelines to prevent overheating and ensure reliable operation.
  • MACOM provides guidelines for soldering and assembly techniques to ensure reliable connections and prevent damage to the device. Engineers should follow MACOM's recommended soldering and assembly procedures to ensure optimal performance and reliability.
  • MACOM provides application notes and technical support to help engineers troubleshoot common issues with the MASW-008322-TR1000. Engineers can also consult with MACOM's technical support team for guidance on troubleshooting and resolving issues.
  • Operating the MASW-008322-TR1000 beyond the recommended operating conditions can lead to reduced performance, reliability issues, or even device failure. Engineers should ensure that the device is operated within the recommended specifications to ensure optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MASW-008322-TR1000 Overview

Use the download button to access the MASW-008322-TR1000 schematic symbol, PCB footprint, and 3D model.
