MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
The device requires a bias tee or a DC block to isolate the RF signal from the DC bias. A voltage regulator and a current limiting resistor are also recommended to ensure stable biasing.
MACOM recommends using a pi-network or a T-network for input and output matching. The specific component values will depend on the application and operating frequency.
MACOM recommends using ESD protection devices, such as TVS diodes, and following proper handling and storage procedures to prevent ESD damage.
A typical application circuit includes a bias tee, a DC block, and a matching network. The device can be used in a variety of applications, including amplifiers, switches, and attenuators.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MASW-008543-TR3000 Overview

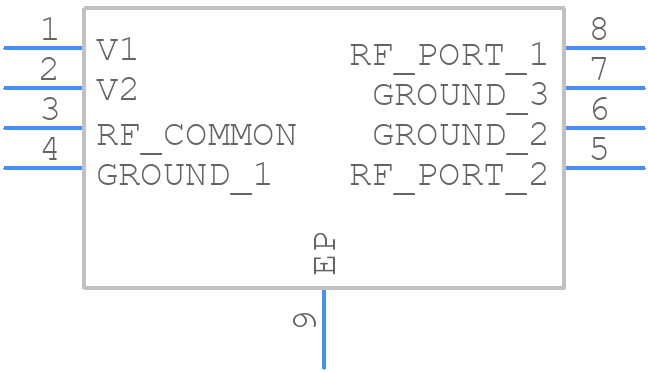

Use the download button to access the MASW-008543-TR3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASW-,
or try a keyword search, such as RF/Microwave Switches
