MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
The device requires a bias tee or a DC block to provide the correct voltage and current. A bias voltage of 5V to 12V is recommended, and the current limit should be set to 100mA to 200mA depending on the application.
MACOM recommends using a pi-network or a T-network for input and output matching. The exact component values depend on the specific application and frequency range, but a general guideline is to use a 50Ω impedance for the input and output.
The device is sensitive to ESD, so it's essential to handle it with ESD-safe materials and tools. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe package when not in use.
The recommended operating temperature range for the MASW-009482-TR3000 is -40°C to 85°C. However, the device can be operated at temperatures up to 100°C with reduced performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MASW-009482-TR3000 Overview

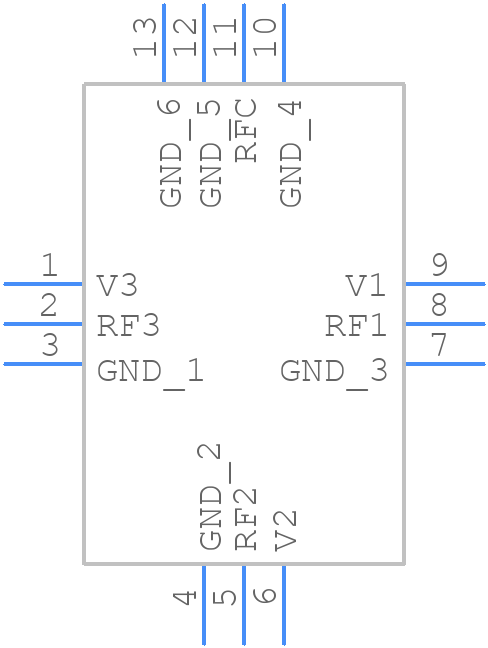

Use the download button to access the MASW-009482-TR3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASW-,
or try a keyword search, such as RF/Microwave Switches
