A 50-ohm microstrip line with a width of 1.5 mm to 2 mm is recommended for optimal performance. The device should be placed on a solid ground plane to minimize radiation losses.
The device requires a bias voltage of 5V to 12V, and a bias current of 10mA to 50mA. A resistor and capacitor in series can be used to create a simple bias network.
The device can handle up to 2W of continuous wave (CW) power, and up to 10W of peak power for pulsed signals.
The device has an input impedance of 50 ohms, and an output impedance of 50 ohms. A simple LC matching network can be used to match the impedance to your system.
The device operates over a temperature range of -40°C to 85°C, with a storage temperature range of -55°C to 125°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MASW-011040-TR0500 Overview

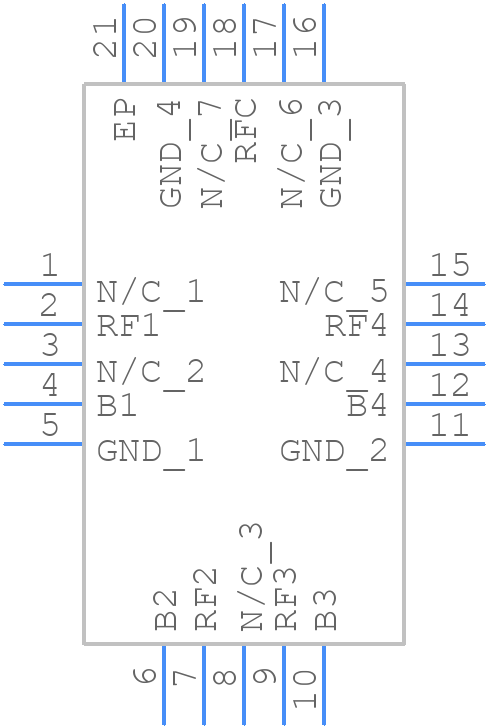

Use the download button to access the MASW-011040-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASW-,
or try a keyword search, such as RF/Microwave Switches
