MASW-011060-TR0500 - MACOM

Description: RF Switch ICs .5-6GHz SP2T IL .5dB @4GHz

Download MASW-011060-TR0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

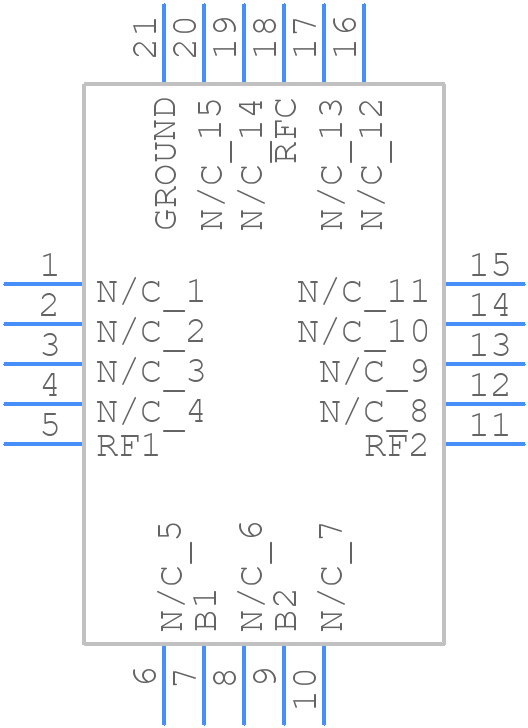

Symbol
MASW-011060-TR0500 - MACOM - PCB symbol
click to zoom
PCB Footprints
MASW-011060-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Lead Free 4 mm 20-Lead HQFN†
click to zoom
3D Models
MASW-011060-TR0500 - MACOM - 3D model - Quad Flat No-Lead - Lead Free 4 mm 20-Lead HQFN†
click to zoom

MASW-011060-TR0500 Details

  • Manufacturer Part Number:

    MASW-011060-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    MACOM

  • YTEOL:

    6.9

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    0.45 dB

  • Isolation-Min:

    40 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • On Time-Nom:

    1.5 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    -5,5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • VSWR-Max:

    1.5

MASW-011060-TR0500 Frequently Asked Questions (FAQs)

  • A 50-ohm microstrip line with a width of 1.5 mm to 2 mm is recommended for optimal performance. The device should be placed on a solid ground plane to minimize radiation losses.
  • The device requires a bias voltage of 5V to 12V, and a bias current of 10mA to 50mA. A resistor and capacitor in series can be used to create a simple bias network.
  • The maximum power handling of the MASW-011060-TR0500 is 2W. Exceeding this power limit may result in device damage or degradation.
  • The device has an input impedance of 50 ohms. A simple L-match or pi-match network can be used to match the impedance to your system. Simulation software such as ADS or AWR can be used to design the matching network.
  • The operating temperature range of the MASW-011060-TR0500 is -40°C to 85°C. Operating the device outside of this range may result in reduced performance or device failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MASW-011060-TR0500 Overview

Use the download button to access the MASW-011060-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASW-, or try a keyword search, such as RF/Microwave Switches
