MASW-011102-TR0500 - MACOM

Description: RF Switch ICs

Download MASW-011102-TR0500 Model

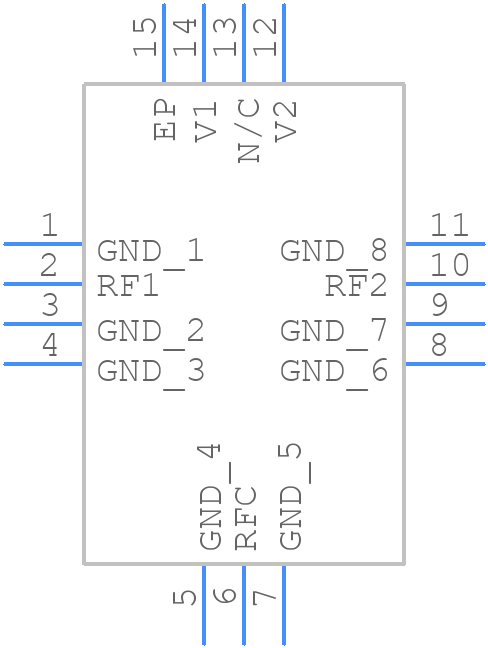

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MASW-011102-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14-Lead PQFN
click to zoom
3D Models
MASW-011102-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - 14-Lead PQFN
click to zoom

MASW-011102-TR0500 Details

  • Manufacturer Part Number:

    MASW-011102-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    MACOM

  • YTEOL:

    9.4

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25.05 dBm

  • Insertion Loss-Max:

    2.5 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    30000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • VSWR-Max:

    1.43
