MASW-011105-TR0500 - MACOM

Description: IC RF SWITCH SPDT 14QFN

Download MASW-011105-TR0500 Model

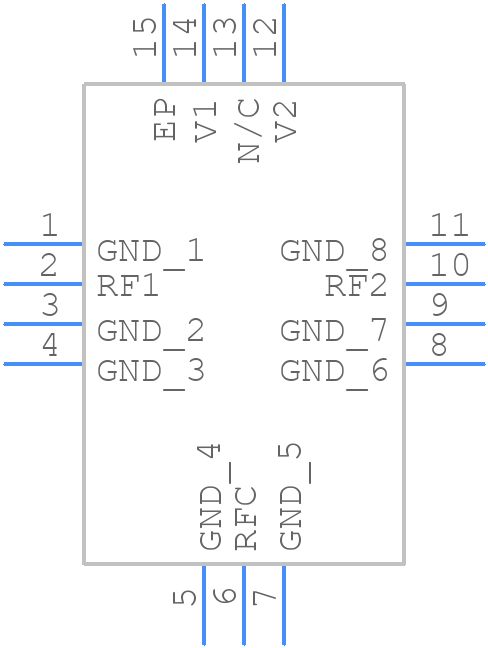

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MASW-011105-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14-Lead PQFN
click to zoom
3D Models
MASW-011105-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - 14-Lead PQFN
click to zoom

MASW-011105-TR0500 Details

  • Manufacturer Part Number:

    MASW-011105-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Date Of Intro:

    2018-06-18

  • Manufacturer:

    MACOM

  • YTEOL:

    7.9

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    25 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • On Time-Nom:

    0.012 µs

  • Operating Frequency-Max:

    31000 MHz

  • Operating Frequency-Min:

    17700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC14,.12SQ,20

  • Port Termination:

    REFLECTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.43

MASW-011105-TR0500 Frequently Asked Questions (FAQs)

  • A 50-ohm microstrip line with a width of 1.5 mm to 2.5 mm is recommended for optimal performance. The device should be placed on a solid ground plane to minimize radiation losses.
  • The device requires a bias voltage of 5V to 12V, and a bias current of 10mA to 50mA. A resistor and capacitor in series can be used to create a simple bias network.
  • The maximum power handling of the MASW-011105-TR0500 is 1W. Exceeding this power limit can cause permanent damage to the device.
  • Common issues include incorrect biasing, poor PCB layout, and excessive power input. Check the bias voltage and current, and ensure the PCB layout is correct. Use a spectrum analyzer to check for spurious signals.
  • Yes, the MASW-011105-TR0500 is designed for high-reliability applications and is qualified to MIL-PRF-38534 standards.
