- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MASW-011120-TR1000
- Part Number MASW-011120-TR1000
- Manufacturer MACOM
- Pin Count 21
- Part Category Switch
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - MASW-011120-TR1000
- Released Date Aug 10, 2023
- Last Modified Date Aug 11, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
MASW-011120-TR1000 Details
-
Manufacturer Part Number:
MASW-011120-TR1000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-20
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Date Of Intro:
2020-06-05
-
Manufacturer:
MACOM
-
YTEOL:
7
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
MASW-011120-TR1000 Frequently Asked Questions (FAQs)
-
MACOM provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. Following this layout and land pattern is crucial for achieving optimal performance and minimizing parasitic effects.
-
The MASW-011120-TR1000 requires a specific biasing scheme to operate optimally. MACOM recommends using a voltage regulator to maintain a stable voltage supply, and a bias resistor network to set the desired bias current. Refer to the application note AN-2171 for more details.
-
While the datasheet specifies an operating temperature range of -40°C to +85°C, MACOM recommends derating the device's power dissipation at higher temperatures to ensure reliable operation. Consult the datasheet and application note AN-2171 for more information on thermal management.
-
The MASW-011120-TR1000 is a sensitive device and requires proper ESD protection during handling and assembly. MACOM recommends following standard ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-protected packaging.
-
MACOM recommends storing the MASW-011120-TR1000 in its original packaging, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body, not the leads. Refer to the datasheet for more information on storage and handling.
Trust Checks
Community Provided
System Verified
Community Approved
MASW-011120-TR1000 Overview

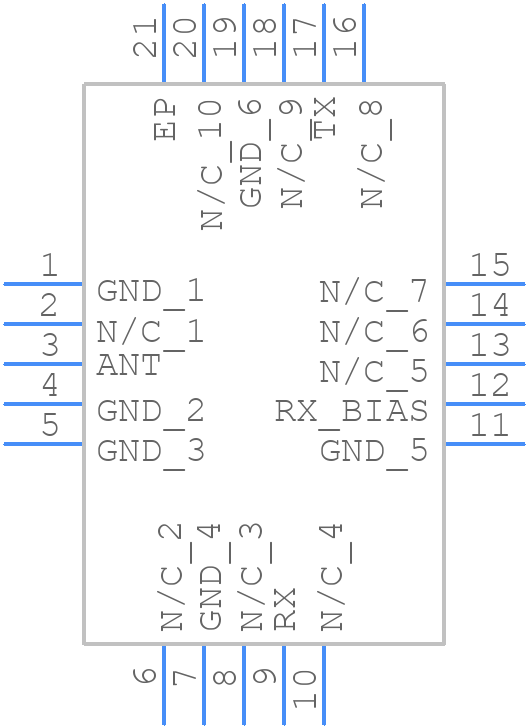

Use the download button to access the MASW-011120-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASW-,
or try a keyword search, such as RF/Microwave Switches
