A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from each other.
The device requires a positive bias voltage (Vcc) between 4.5V and 5.5V, and a negative bias voltage (Vee) between -4.5V and -5.5V. The recommended bias current is 10mA to 20mA.
The device can handle up to 1W of RF power, but it's recommended to derate the power handling to 0.5W to ensure reliable operation.
The device has a nominal input impedance of 50 ohms and a nominal output impedance of 50 ohms. External matching networks may be required to achieve optimal impedance matching.
The device is designed to operate over a temperature range of -40°C to +85°C, but the optimal operating temperature range is between 0°C and 50°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MASWCC0006 Overview

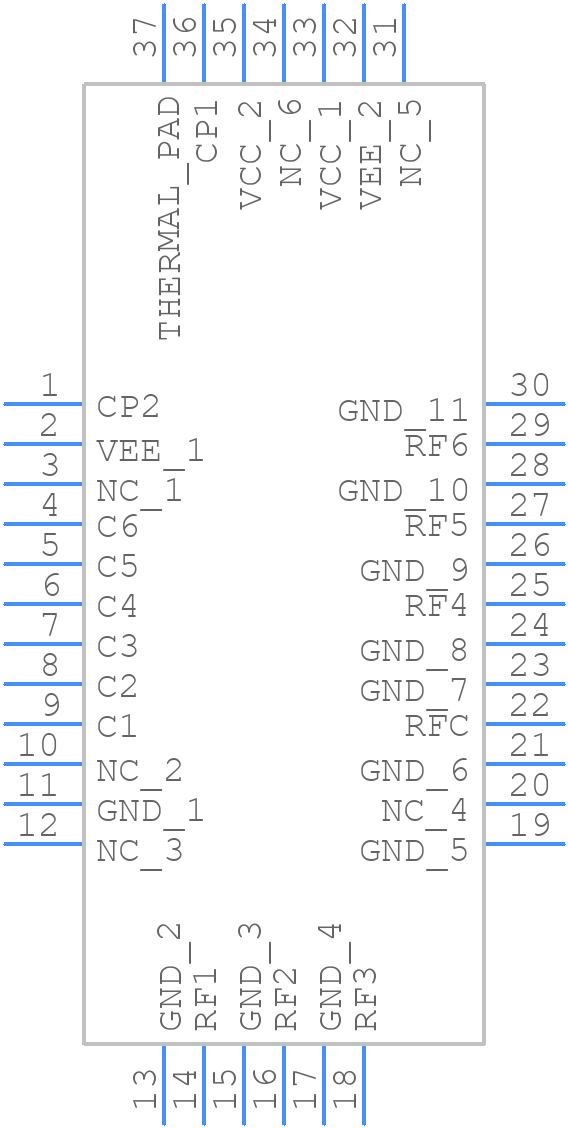

Use the download button to access the MASWCC0006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASWC,
or try a keyword search, such as RF/Microwave Switches
