Part Image

MASWSS0130TR-3000 - MACOM

Description: RF Switch ICs 500-3000MHz Iso 25dB IL .6dB @2.4GHz

Download MASWSS0130TR-3000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

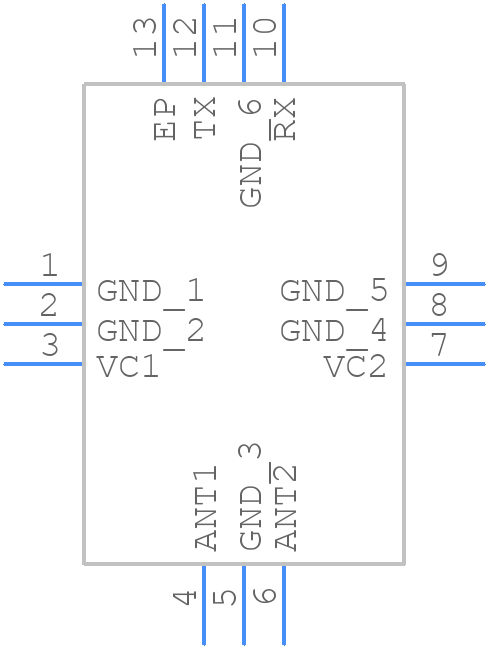

Symbol
MASWSS0130TR-3000 - MACOM - PCB symbol
click to zoom
PCB Footprints
MASWSS0130TR-3000 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead PQFN†
click to zoom
3D Models
MASWSS0130TR-3000 - MACOM - 3D model - Quad Flat No-Lead - 12-Lead PQFN†
click to zoom

MASWSS0130TR-3000 Details

  • Manufacturer Part Number:

    MASWSS0130TR-3000

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    MACOM

  • YTEOL:

    6.4

  • 1dB Compression Point:

    34 dBm

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    35 dBm

  • Insertion Loss-Max:

    0.9 dB

  • Isolation-Min:

    20 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • On Time-Nom:

    0.048 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.15

MASWSS0130TR-3000 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
  • The device requires a bias voltage of 5V and a bias current of 300mA. A voltage regulator and a current limiter should be used to ensure the device is biased correctly. Additionally, the bias voltage and current should be monitored to prevent overheating.
  • The maximum operating temperature for the MASWSS0130TR-3000 is 85°C. Operating the device above this temperature can reduce its reliability and lifespan.
  • Troubleshooting issues with the device typically involves checking the bias voltage and current, ensuring proper thermal management, and verifying the input and output matching networks. MACOM also provides application notes and technical support to help troubleshoot issues.
  • Yes, the MASWSS0130TR-3000 can be used in a push-pull configuration to achieve higher power output. However, this requires careful design and layout of the PCB, as well as proper biasing and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MASWSS0130TR-3000 Overview

Use the download button to access the MASWSS0130TR-3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASWS, or try a keyword search, such as RF/Microwave Switches
