MASWSS0175TR-3000 - MACOM

Description: RF Switch ICs 4.5-6.0GHz Iso 25dB IL .8dB@5.2GHz

Download MASWSS0175TR-3000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

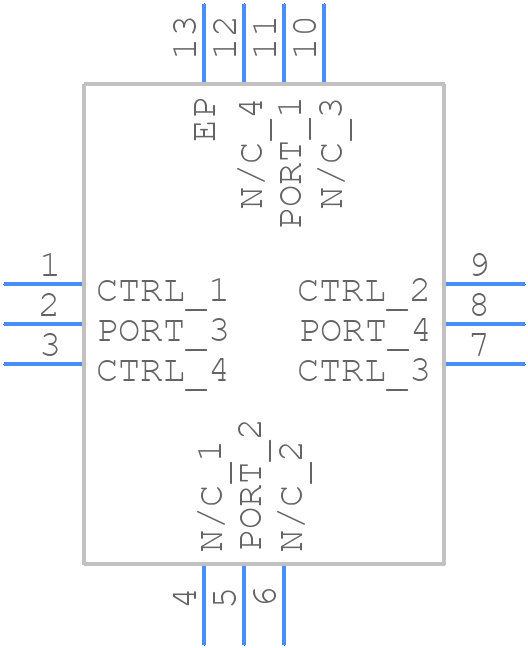

Symbol
MASWSS0175TR-3000 - MACOM - PCB symbol
click to zoom
PCB Footprints
MASWSS0175TR-3000 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead PQFN†
click to zoom
3D Models
MASWSS0175TR-3000 - MACOM - 3D model - Quad Flat No-Lead - 12-Lead PQFN†
click to zoom

MASWSS0175TR-3000 Details

  • Manufacturer Part Number:

    MASWSS0175TR-3000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, GREEN, PLASTIC, MO-220VEED-1, QFN-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    MACOM

  • YTEOL:

    6.1

  • 1dB Compression Point:

    33 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • On Time-Nom:

    0.04 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    4500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.12

MASWSS0175TR-3000 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
  • The device requires a bias voltage of 5V and a bias current of 300mA. Ensure that the bias circuitry is designed to provide a stable voltage and current, and that the device is operated within the recommended operating conditions.
  • The device is capable of handling up to 3000W of peak power. However, the actual power handling capability may vary depending on the operating frequency, duty cycle, and environmental conditions.
  • MACOM recommends following standard ESD precautions when handling the device, including using an ESD wrist strap, ESD mat, and ESD-safe packaging. The device should also be stored in a protective package when not in use.
  • The typical lead time for the MASWSS0175TR-3000 is 12-14 weeks, and the minimum order quantity (MOQ) is 100 pieces. However, lead times and MOQs may vary depending on the region and availability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MASWSS0175TR-3000 Overview

Use the download button to access the MASWSS0175TR-3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASWS, or try a keyword search, such as RF/Microwave Switches
