MAV-11BSM+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, 50 - 1000 MHz, 50

Download MAV-11BSM+ Model

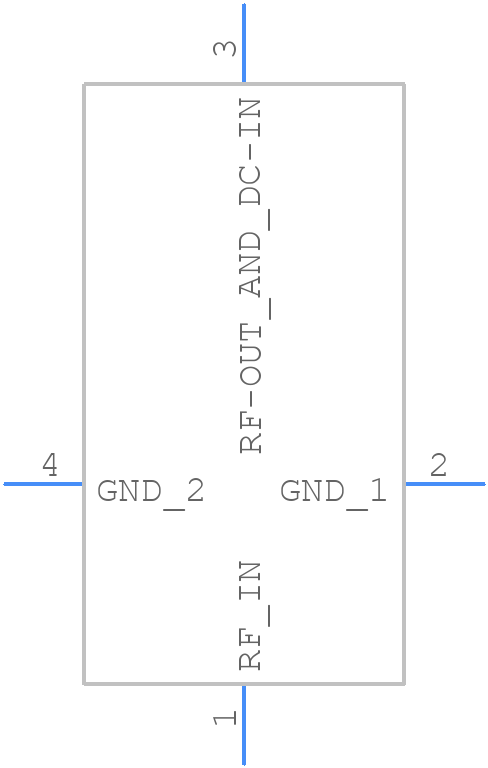

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAV-11BSM+ - Mini-Circuits PCB footprint - Other - Other - MAV-11BSM+-2
click to zoom
3D Models
MAV-11BSM+ - Mini-Circuits  - 3D model - Other - MAV-11BSM+-2
click to zoom

MAV-11BSM+ Details

  • Manufacturer Part Number:

    MAV-11BSM+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    9.5 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SL,4LEAD,.145CIRC

  • Power Supplies:

    5.5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    60 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Platinum/Gold (Pt/Au)

  • VSWR-Max:

    1.2

MAV-11BSM+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance matching. Proper grounding and decoupling are crucial for optimal performance and noise reduction.
  • The MAV-11BSM+ requires a single +12V to +15V power supply. Ensure the voltage is well-regulated and decoupled. A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling. Additionally, a 1kohm to 2kohm resistor in series with the bias pin can help stabilize the bias voltage.
  • The MAV-11BSM+ can handle up to +10dBm of input power without damage. However, for optimal performance and linearity, it's recommended to keep the input power below +5dBm.
  • To achieve the best possible noise figure, ensure the input is properly matched to 50 ohms, and the amplifier is operated within its recommended operating conditions. Additionally, using a high-quality, low-noise power supply and proper PCB layout and grounding can help minimize noise.
  • Yes, the MAV-11BSM+ can be used in a push-pull configuration to achieve higher power output. However, this requires careful design and layout consideration to ensure proper impedance matching, biasing, and thermal management.
