MAV-11SM+ footprint, schematic symbol and 3D model by Mini-Circuits

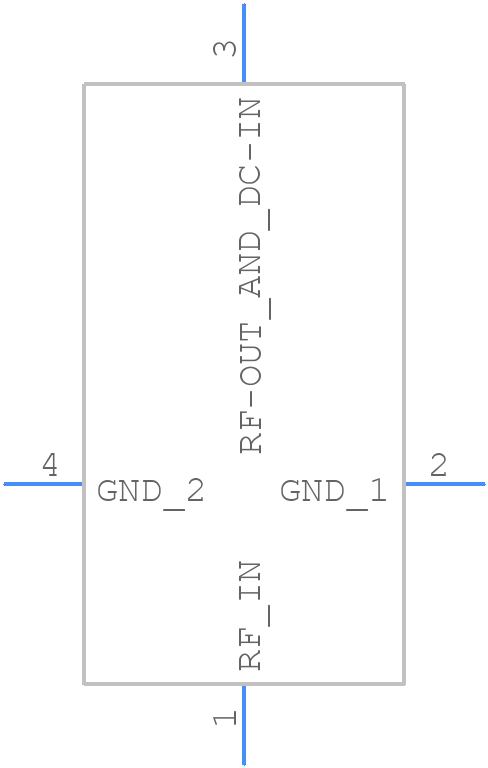

Symbol

click to zoom

PCB Footprints

MAV-11SM+ - Mini-Circuits PCB footprint - Other - Other - MAV-11SM+-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAV-11SM+
Part Number MAV-11SM+
Manufacturer Mini-Circuits
Pin Count 4
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MAV-11SM+-2
Released Date Jan 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAV-11SM+ Details

Manufacturer Part Number:
MAV-11SM+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
0
Additional Feature:
LOW NOISE
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
9 dB
Input Power-Max (CW):
13 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
4
Operating Frequency-Max:
1000 MHz
Operating Frequency-Min:
50 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SL,4LEAD,.145CIRC
Power Supplies:
5.5 V
RF/Microwave Device Type:
WIDE BAND LOW POWER
Surface Mount:
YES
Technology:
HYBRID
Terminal Finish:
TIN
VSWR-Max:
1.7

MAV-11SM+ Frequently Asked Questions (FAQs)

Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the amplifier. The input and output traces should be kept short and 50-ohm matched. A decoupling capacitor (e.g., 100nF) should be placed close to the amplifier's power pins.
To achieve the specified gain flatness and noise figure, ensure that the input and output impedances are matched to 50 ohms, and the amplifier is operated within its recommended operating conditions (e.g., voltage, current, and temperature). Additionally, use high-quality components and follow good PCB design practices.
The maximum input power that the MAV-11SM+ can handle without damage is +10 dBm. Exceeding this limit may cause permanent damage to the amplifier.
Yes, the MAV-11SM+ can be used as a receiver amplifier. However, the amplifier's noise figure will impact the overall system noise figure, and the gain may need to be adjusted to optimize system performance. Additionally, the amplifier's input impedance may need to be matched to the antenna or preceding stage impedance.
The thermal resistance of the MAV-11SM+ package is approximately 25°C/W. High temperatures can affect the amplifier's performance, including gain, noise figure, and linearity. Ensure good heat sinking and airflow to maintain a temperature below 85°C for optimal performance.

Trust Checks

Expert Contribution

System Verified

Community Approved

MAV-11SM+ Overview

Use the download button to access the MAV-11SM+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAV-1, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
