MAX-7W-0 - u-blox

Description: MAX-7 RF Receiver GLONASS, GNSS, GPS 1.575GHz -158dBm

Download MAX-7W-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

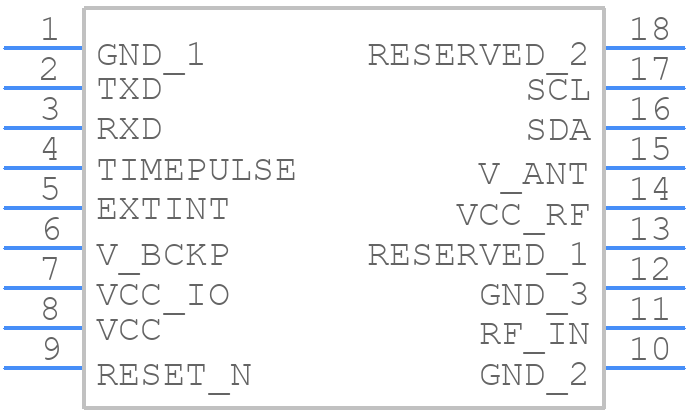

MAX-7W-0 - u-blox - PCB symbol
click to zoom
PCB Footprints
MAX-7W-0 - u-blox PCB footprint - Other - Other - MAX-7W-0-2
click to zoom
3D Models
MAX-7W-0 - u-blox - 3D model - Other - MAX-7W-0-2
click to zoom

MAX-7W-0 Details

  • Manufacturer Part Number:

    MAX-7W-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, LCC-18

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    u-blox AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-XDMA-N18

  • Length:

    10.1 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.7 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Width:

    9.7 mm

MAX-7W-0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply power to the module's VCC pin, followed by the enable pin (EN). This ensures that the module is properly initialized and configured.
  • The MAX-7W-0 module can be configured for use in a specific region or country by setting the appropriate configuration bits in the module's non-volatile memory. This can be done using the u-blox u-center software or by sending the appropriate AT commands to the module.
  • The maximum current consumption of the MAX-7W-0 module is approximately 100 mA during continuous transmission and 20 mA during standby mode.
  • Yes, the MAX-7W-0 module can be used with a non-standard antenna, but it may require additional tuning and optimization to ensure optimal performance. It is recommended to consult with a qualified RF engineer to ensure proper antenna design and implementation.
  • To troubleshoot issues with the MAX-7W-0 module's GPS functionality, check the module's power supply, antenna connection, and configuration settings. Also, verify that the module is receiving a valid GPS signal by checking the signal strength and satellite visibility using the u-blox u-center software or by sending the appropriate AT commands to the module.
