MAX1044CSA+ - Analog Devices

Description: Switched-Capacitor Voltage Converters

Download MAX1044CSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

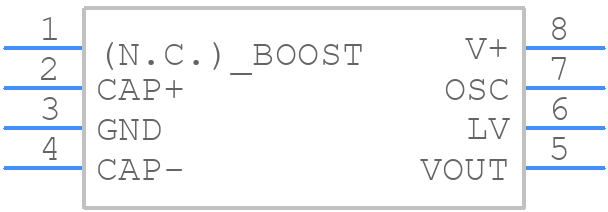

MAX1044CSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1044CSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+4
click to zoom
3D Models
MAX1044CSA+ - Analog Devices - 3D model - Small Outline Packages - S8+4
click to zoom

MAX1044CSA+ Details

  • Manufacturer Part Number:

    MAX1044CSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    LEAD FREE, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    10 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1044CSA+ Frequently Asked Questions (FAQs)

  • The MAX1044CSA+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
  • The MAX1044CSA+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal pad or heat sink, and ensuring good airflow around the device. The thermal resistance of the package is 30°C/W, and the maximum power dissipation is 1.5W.
  • The MAX1044CSA+ requires proper input and output filtering to ensure reliable operation. It is recommended to use a 1uF to 10uF ceramic capacitor at the input to filter out high-frequency noise and ripple. Additionally, a 10uF to 100uF electrolytic capacitor can be used at the output to filter out low-frequency noise and ripple. The output filter should be designed to ensure that the output voltage ripple is within the specified limits.
  • To ensure EMC with the MAX1044CSA+, it is recommended to follow proper PCB design and layout practices, including using a solid ground plane, minimizing loop areas, and using shielding and filtering where necessary. Additionally, it is recommended to use a common-mode choke or ferrite bead at the input to filter out high-frequency noise and interference.
  • The MAX1044CSA+ requires proper power-up and power-down sequencing to ensure reliable operation. It is recommended to power up the device in the following sequence: VCC, VIN, and then EN. When powering down, the sequence should be reversed: EN, VIN, and then VCC. This ensures that the device is properly initialized and shut down to prevent damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1044CSA+ Overview

Use the download button to access the MAX1044CSA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX10, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
