MAX1044ESA+T - Analog Devices

Description: Switching Voltage Regulators Switched-Capacitor Voltage Converters

Download MAX1044ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

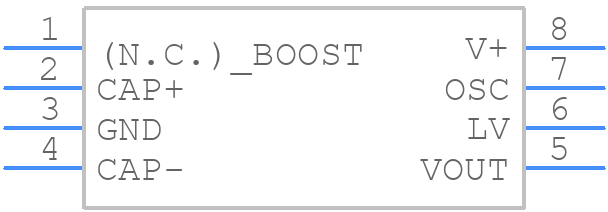

Symbol
MAX1044ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1044ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 150 mil 8-Pin SO
click to zoom
3D Models
MAX1044ESA+T - Analog Devices - 3D model - Small Outline Packages - 150 mil 8-Pin SO
click to zoom

MAX1044ESA+T Details

  • Manufacturer Part Number:

    MAX1044ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    10 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1044ESA+T Frequently Asked Questions (FAQs)

  • The MAX1044ESA+T is a high-speed device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX1044ESA+T has a maximum junction temperature of 150°C. To handle thermal management, it is recommended to use a heat sink or a thermal pad to dissipate heat. The device should be mounted on a PCB with a thermal via to the ground plane, and the power supply should be designed to minimize heat generation. Additionally, the device should be operated within the recommended operating conditions to minimize power consumption and heat generation.
  • The MAX1044ESA+T has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. However, it is still recommended to follow proper ESD handling procedures when handling the device. To prevent latch-up, it is recommended to follow the recommended operating conditions, avoid overvoltage conditions, and use a power-on reset circuit to ensure that the device is properly initialized during power-up.
  • To troubleshoot common issues with the MAX1044ESA+T, it is recommended to follow a systematic approach, including checking the power supply, input voltage, and output voltage. Verify that the device is properly configured and that the input and output capacitors are properly selected. Use an oscilloscope to check for oscillations or incorrect output voltages, and consult the datasheet and application notes for troubleshooting guidelines.
  • The MAX1044ESA+T is a commercial-grade device and is not specifically designed for radiation-hardened applications. However, it is fabricated using a CMOS process, which provides some level of radiation hardness. The device is also designed to meet the reliability requirements of industrial and commercial applications, including a high mean time between failures (MTBF) and a low failure rate.
